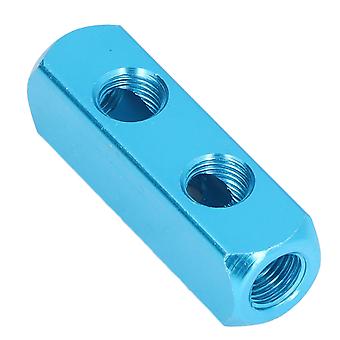

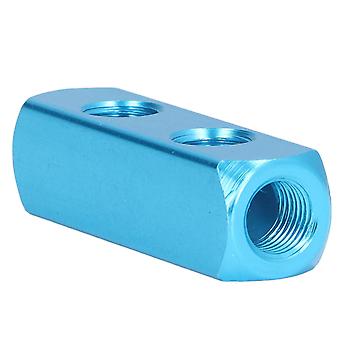

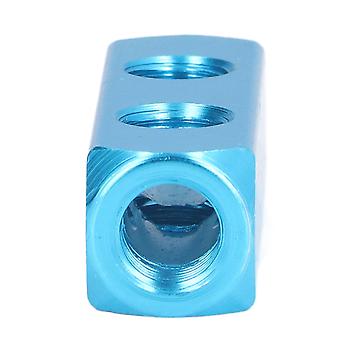

Features Pure Aluminum Material: Made of pure aluminum material, corrosion resistant, rust prevention, not easy to deform, and more durable. Convenient Installation: This is convenient installation of the air distribution exhaust, no air leakage, good sealing. Application: Widely used for engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering. Simple Structure: Adopts the simple structure, compact size, lighter weight, easy to install and unload. Compatible Equipment: Manifold splitter is mainly used for air pumps, cylinders, compressors, vacuum engines, etc. Specification: Item Type: Pneumatic Manifold Block Splitter Material: Aluminum Pressure Resistance: 1.0MPA (10kgf/cm) Working Pressure: 0~0.9Mpa(0~0.92kfg/cm²) Adaptation Temperature: 0~60℃ModelTotal Length (Approx.)Way Number Holes Number Length x Width (Approx.)Thread SpecificationsIntersection Center Spacing(Approx.)AL-265mm / 2.56in2 Way 5 Holes20x20mm / 0.80x0.80inG1/4(12mm)30mm / 1.18inAL-3 95mm / 3.74in3 Way 6 Holes20x20mm / 0.80x0.80inAL-4 125mm / 4.92in4 Way 7 Holes20x20mm / 0.80x0.80inAL-5 155mm / 6.10in5 Way 8 Holes20x20mm / 0.80x0.80inAL-6 185mm / 7.28in6 Way 9 Holes20x20mm / 0.80x0.80inAL-7 215mm / 8.46in7 Way 10 Holes20x20mm / 0.80x0.80inAL-8 245mm / 9.65in8 Way 11 Holes20x20mm / 0.80x0.80in Package List:1 x Pneumatic Manifold Block Splitter Note:1. Do not unplug and insert the gas pipe frequently during the use of the connector, which will affect the service life of the connector and gas pipe2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage3. When pulling out the gas pipe, first confirm that there is no pressure in the tube, press the end caps of the joint to the end and pull out the gas pipe Package List 1 x Pneumatic Manifold Block Splitter
