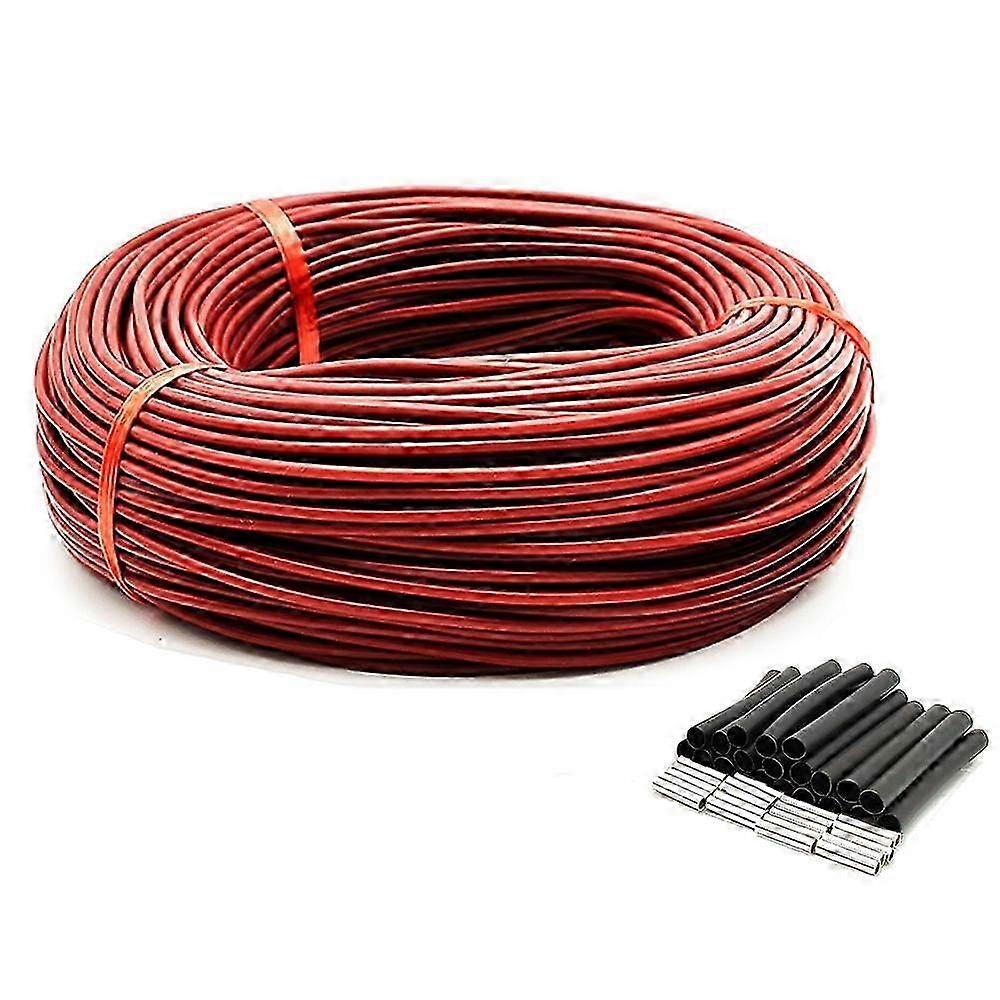

MINCO HEAT 10 to 100 Meters 12K Floor Warm Heating Cable 33ohm/m Carbon Fiber Heating Wires Product Details: Product Name: Carbon fiber heating wire Insulating materials: Silicone rubber Temperature: 200 degrees celsiuslimit Heating conductor: 12K High voltage test: 3000V Leakage current: 0.05mA/m The product can withstand the power of power: 25W/M Diameter: 30.2MM Optional colors: Red and Yellow, please leave a message for the desired color Infrared wavelength: 8UM-18UM Conductor resistance: 33 10% / M Length: (custom,not less than 10 meters) Package Includes: Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves How to calculate power? Voltage*Voltageresistance=electric power 12K=33ohm/meter For example, using 10m 12K carbon fiber cable on 220V, the power is: 220V*220V(10meters*33)=150W For example, using 15m 12K carbon fiber cable on 220V, the power is: 220V*220V(15meters*33)=100W The longer length, the smaller power, and lower heating temperature. What is the power of the cable? And what is heating temperature? 1. The power of the cable is based on the length that you use, you can calculate the power according to above examples. 2. Power = 5W/m, the temperature is about 30~40C degrees; Power = 10W/m, the temperature is about 40~50C degrees; Power = 15W/m, the temperature is about 50~60C degrees; Power = 20W/m, the temperature is about 60~70C degrees; Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions. Product Photos: How to wiring? Product Applications: 1. Floor heating forHome and office:Homes, villas, hotels, office buildings, hospitals, shopping malls 2. Floor heating forpublic areas:Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten 3. Floor heating for large public facilities:Bus terminal, parking lot, airport, highways 4. Floor heating forprofessional field:Botanical garden, greenhouse, laboratory And other heating applications..etc... Product Advantages: 1. High energy-efficient : Don't need other transmission medium, theelectrothermal conversion efficiency is above 98%. 2. Comfortable and healthy : New infrared floor heating, make the temperature uniformity,promote blood circulation. 3. Easy to install : The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs. And etc... Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-DIMEANI official store
