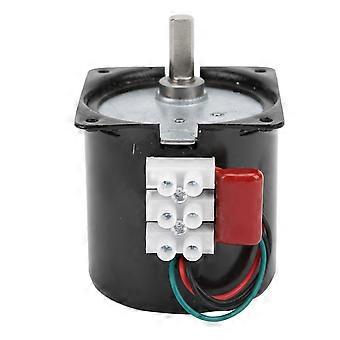

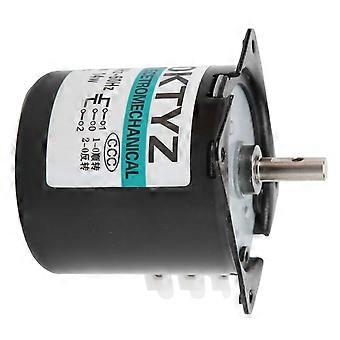

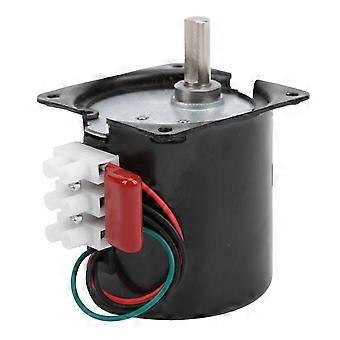

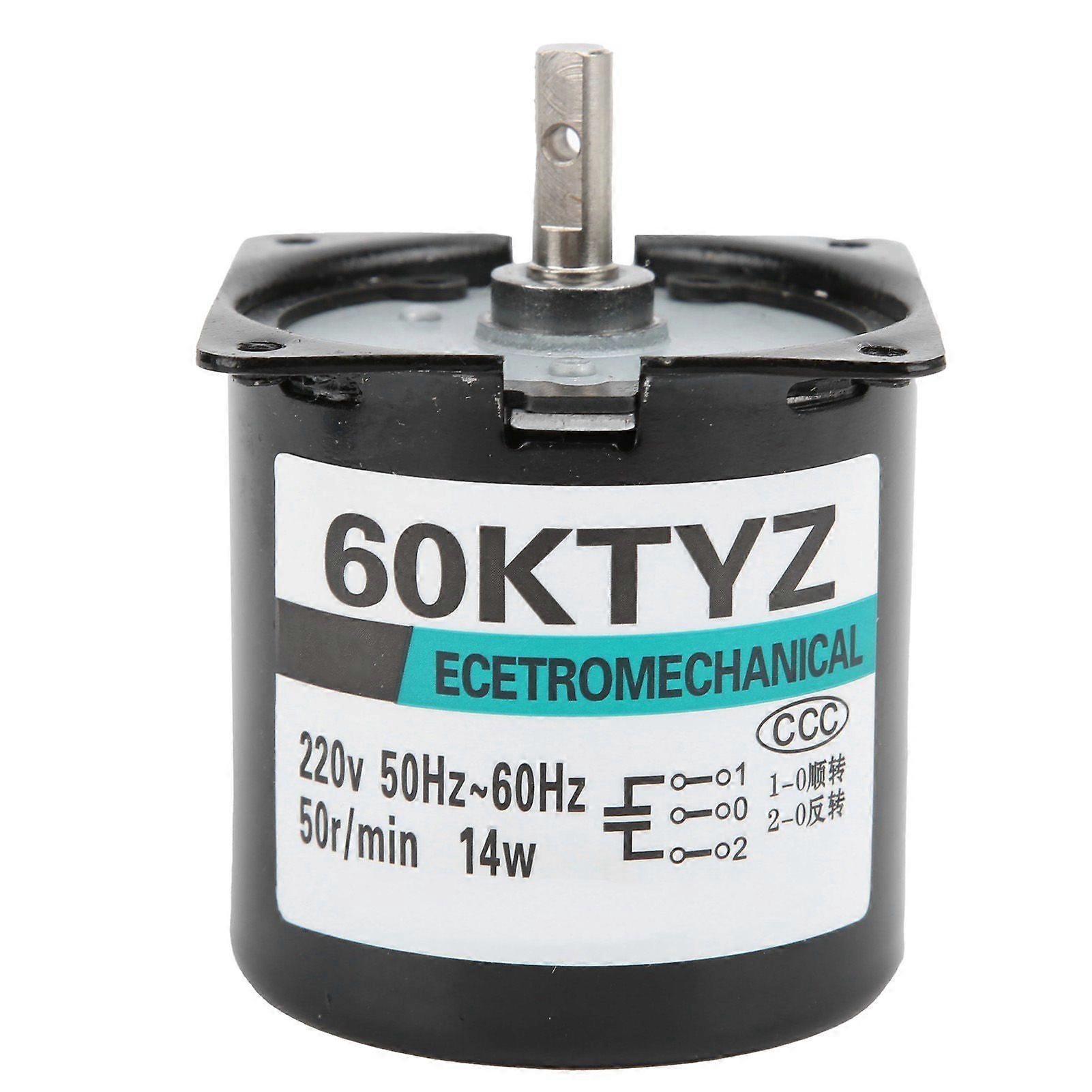

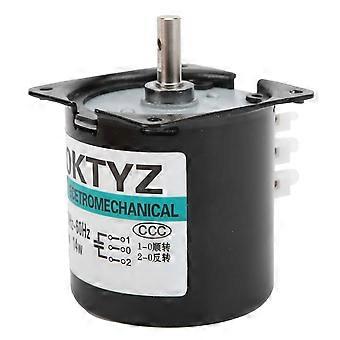

Item Type: AC Synchronous Motor Model: XD60KTYZ + bracket Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for a second, with a voltage of 1800V, there is no abnormality. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil between 75-80 Insulation Class: Class E(130) Operating Environment Temperature: Motor: -10~+40 (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: NoModelVoltage(VRotating speedrpm/minNormal torsion kgfcmlong-time working Larger torsionkgfcmintermittent workPowerW XD60KTYZAC220V3051014 502.5514 801.7314 1101.2214 AC110V3051014 502.5514 801.7314 1101.2214 1Gears wear?resistant, quiet with long life because of all metal, possess small size, large torsion, ultra quiet, and stable operation 2The motor torsion is increased because of pure copper coil stator and rotor, the deceleration resistance and conductivity are strengthened 3The motor gear is applied with high?temperature grease, which has low friction and noise reduction and slow temperature rise, and improves the service life 4Made of good?quality magnetic tiles, which are used for higher working efficiency and less dynamic loss 5Used in various industries such as micro machinery, various robots, various CNC machine tools, high?accuracy measuring instruments, electronic manufacturing equipment, pharmaceutical equipment, financial machinery, military industry and other industries1 x AC Synchronous Motor 1 x Bracket
