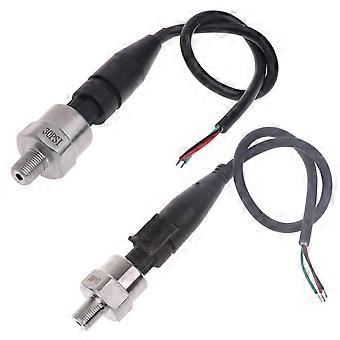

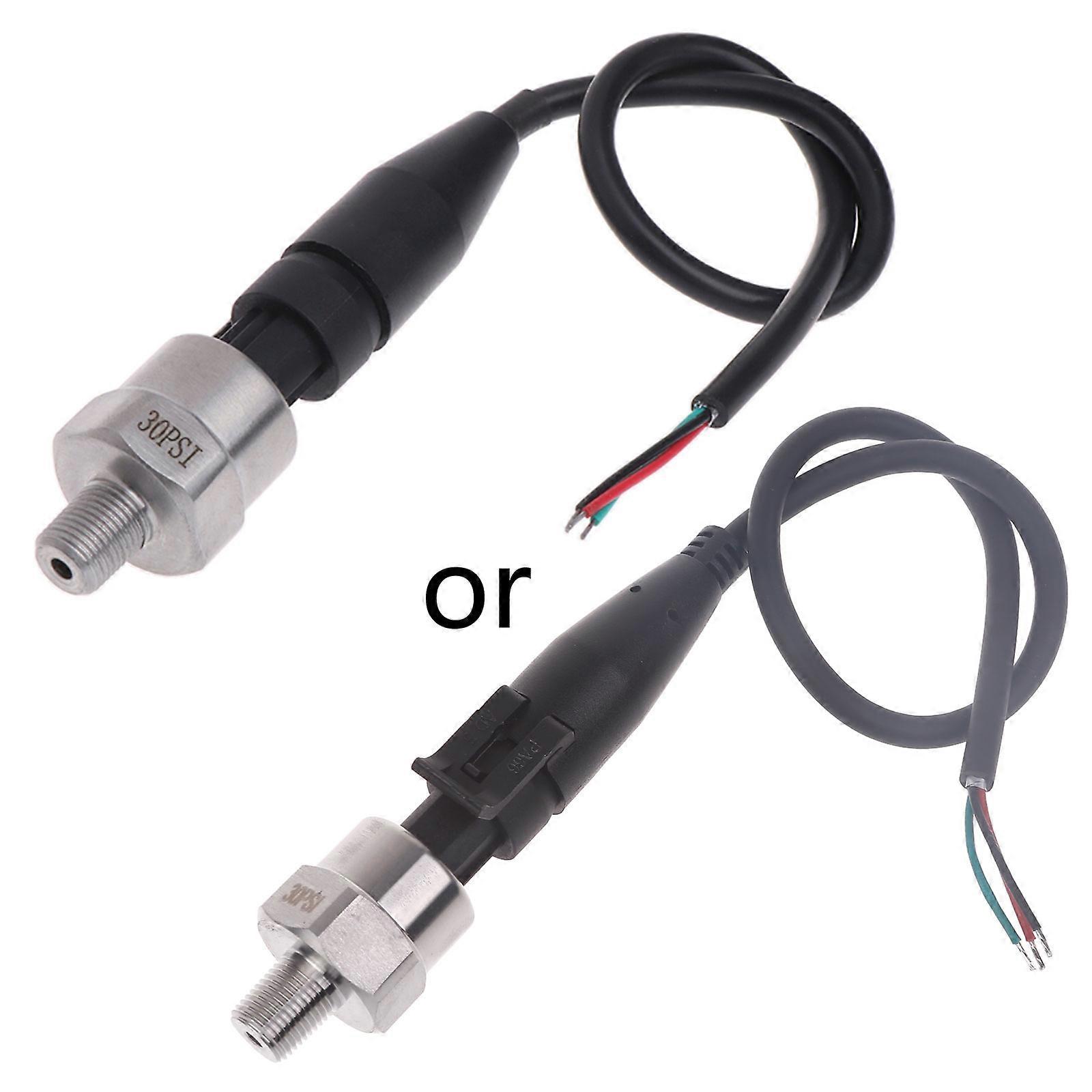

["Features:\nIt's an advance pressure transducer than traditional mechanical pressure transducer.\n±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.\nLight weight and small size, convenient to install and operate.\nIt has complete surge voltage for protection function.\nWorks for oil, fuel, , gas, water, pressure, can be used in oil for tank, gas for tank, for tank etc.\n\nSpecifications:\nMaterial: Stainless steel\nVoltage: for DC 5V\nPressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)\nPlease leave a massege,tell me what type you want,or we will send by random.\nThread Type: 1/8\" NPT\n\n30 psi\nInput: 0-30 psi\nOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.\nAccuracy: within 2% of reading (full scale).\nThread: 1/8\"-27 NPT.\nWiring Connector: Water sealed quick disconnect. Mating connector is included.\nWiring: Red for +5V; Black for ground; Blue for signal output.\n\n100 psi\nInput: 0-100 psi\nOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.\nAccuracy: within 2% of reading (full scale).\nThread: 1/8\"-27 NPT\nWiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.\nWiring: Red for +5V; Black for ground; Blue for signal output.\n\n150 psi\nInput: 0-150 psi\nOutput: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V\nAccuracy: +/-0.5%FS\nThread: 1/8\" NPT\nWiring: Red for +5V; Black for ground; Green for signal output\nOverload Capacity: 2-4 times of rated pressure\nWorking Temperature: -40℃~+120℃\nCompensation Temperature: 0℃~+80℃\nfor Protection Class: IP67\nPressure Medium: Oil, gas and water which is for 316L stainless steel\nLoad Resistance: ≤(supply power-6.5V/0.02A)Ω\nLong-term Stability: Less than 0.1%FS/year\nTemperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃\nTemperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃\nShock Resistance: 1000g\nAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)\nResponse Time: ≤1ms\nInsulation Resistance: >100mΩ 500VDC\nExplosion-proof Class: ExiaTTCT6\nElectromagnetism Compatibility: EN50051-1\n\n200 psi\nInput: 0-200 psi\nOutput: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V\nWorking Temperature: -40~+125℃\nAccuracy: ±1%FS\nThread: 1/8\"-27 NPT\nOverload Capacity: 2 times of rated pressure\nPressure Medium: Oil, gas and water which is for 316L stainless steel\nLoad Resistance: ≤(supply power-6.5V/0.02A)Ω\nLong-term Stability: ± 0.2%FS/year\nTemperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃\nTemperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃\nShock Resistance: 100g\nAnti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)\nResponse Time: ≤1ms\nInsulation Resistance: >100mΩ 500VDC\nExplosion-proof Class: ExiaTTCT6\nElectromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3\nWiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.\nWiring: Red for IN+; Black for GND; Green for OUT.\n\n300 psi\nInput: 0-300 psi\nOutput: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V\nAccuracy: +/-0.5%FS\nThread: 1/8\" NPT\nWiring: Red: +5V; Black: ground; Green: signal output\nOverload Capacity: 2-4 times of rated pressure\nWorking Temperature: -40~+120℃\nCompensation Temperature: 0℃~+80℃\nfor Protection Class: IP67\nPressure Medium: Oil, gas and water which is for 316L stainless steel\nLoad Resistance: ≤ (supply power-6.5V/0.02A)Ω\nLong-term stability: Less than 0.1%FS/year\nTemperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃\nTemperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃\nShock Resistance: 1000g\nAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)\nResponse Time: ≤1ms\nInsulation Resistance: >100mΩ 500VDC\nExplosion-proof Class: ExiaTTCT6\nElectromagnetism Compatibility: EN50051-1.\n\n500 psi\nInput: 0-500 psi (Gauge Pressure)\nOutput: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.\nAccuracy: +/-1%FS\nThread: 1/8\" NPT\nWiring: Red for +5V; Black for ground; Yellow (Green) for signal output\nOverload Capacity: 2-4 times of rated pressure\nWorking Temperature: -40℃~+120℃\nCompensation Temperature: 0℃~+80℃\nfor Protection Class: IP67\nPressure Medium: Oil, gas and water which is for 316L stainless steel\nLoad Resistance: ≤ (supply power-6.5V/0.02A)Ω\nLong-term stability: Less than 0.1%FS/year\nTemperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃\nTemperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum:0.05%FS/℃\nShock Resistance: 1000g\nAnti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)\nResponse Time: ≤1ms\nInsulation Resistance: >100mΩ 500VDC\nExplosion-proof Class: ExiaTTCT6\nElectromagnetism
