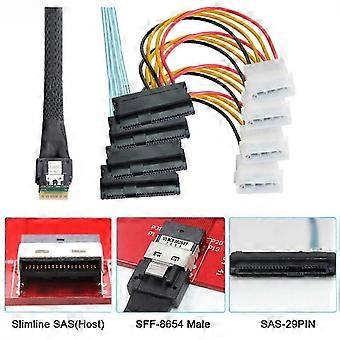

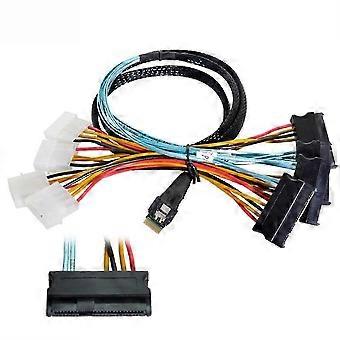

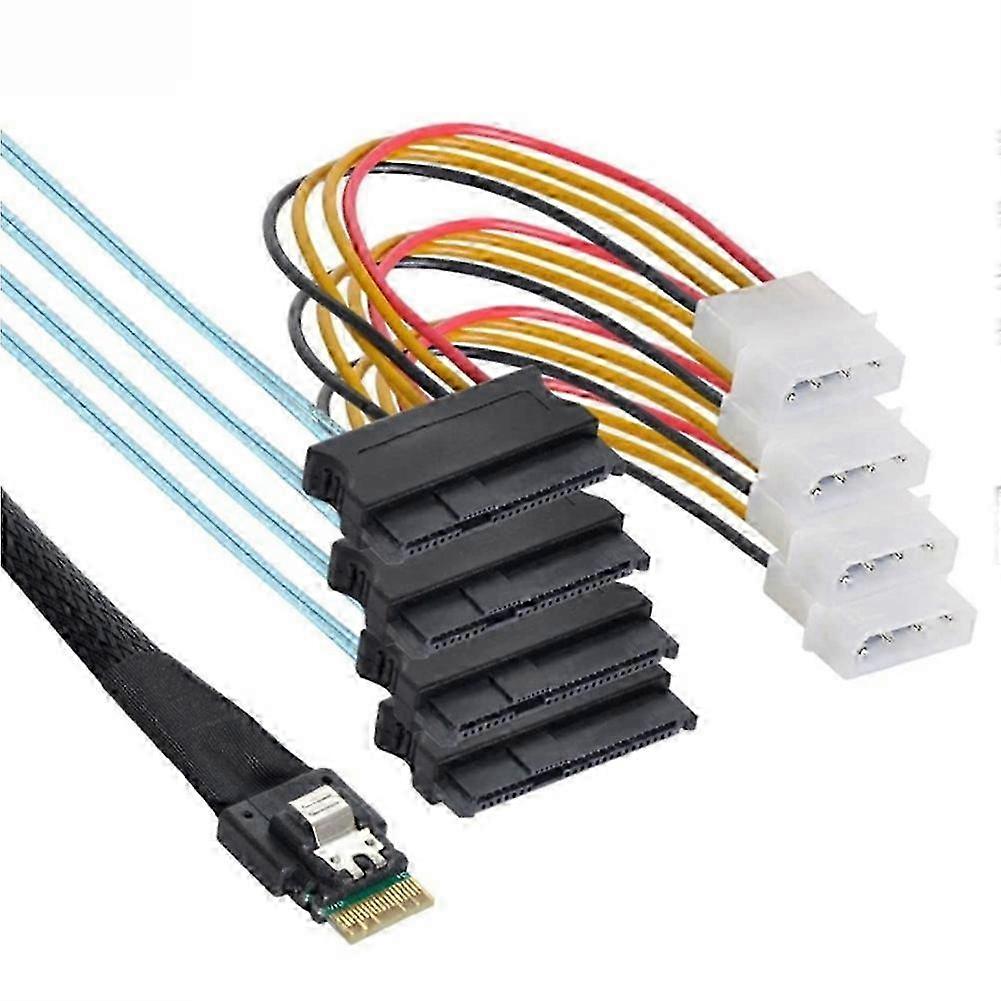

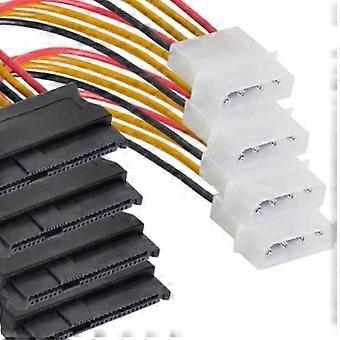

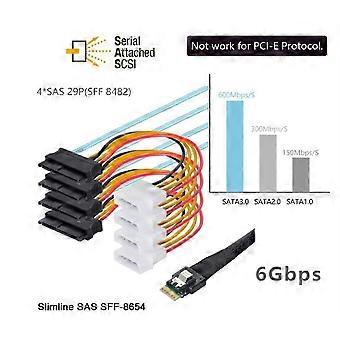

Series: Mini SAS; Cable Length: 0.5M; Wire Size: 30AWG/32AWG, Tinned Copper; OD: 0.9 x 2.3MM; Locking Mechanism: With Latch; Plating: Gold 30µ" min over Nickel 100µ" min; Environmental Compliance: RoHS; Flammability Rating: Cable Horizontal Flame, PCB 94V-0, PBT 94V-0 Applications: Data/Communications: RAID (Redundant Array of Independent Disks), Workstations, Rack-mount Servers, Servers, Storage Racks Features and Benefits: 1. Transmission Rate: 24 Gbps 2. Complies with SAS 4.0 Specification Mechanical Performance: Mating and Unmating Force (per EIA 364-13, 25 mm/minute): - Mini SAS Mating Force: Max 55 N - Mini SAS Unmating Force: Max 49 N - SATA Mating Force: Max 45 N - SATA Unmating Force: Max 10 N Electrical Performance: 1. Contact Current Rating: 0.5 A max per pin (mated) 2. Voltage Rating: 30 VAC per contact (mated or unmated) 3. Contact Resistance: ≤30 mΩ initial, ≤15 mΩ after stress test 4. Dielectric Withstanding Voltage: 500 VAC for 1 minute, no breakdown 5. Insulation Resistance: ≥1000 MΩ Signal Integrity: 1. Mated Connector Impedance: 85 Ω ±15% 2. Cable Absolute Impedance: 85 Ω ±10% 3. Cable Pair Matching: ±5 Ω 4. Common Mode Impedance: 25–40 Ω 5. Insertion Loss: ≤–6 dB up to 4.5 GHz 6. Crosstalk: ≤–26 dB up to 24 GHz Color: As Shown Material: Plastic Package Contents: 1 × Cable
