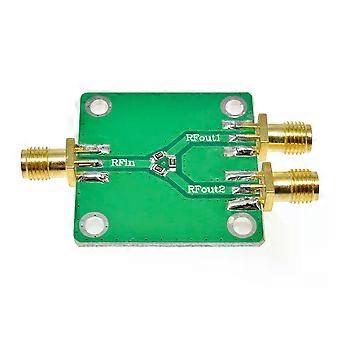

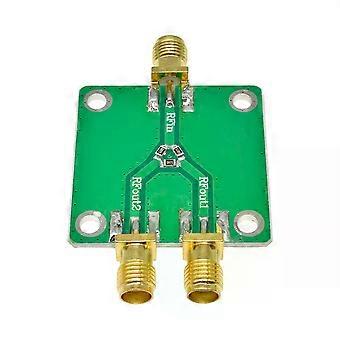

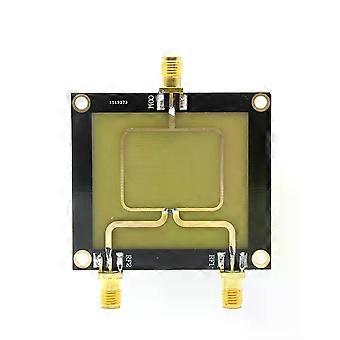

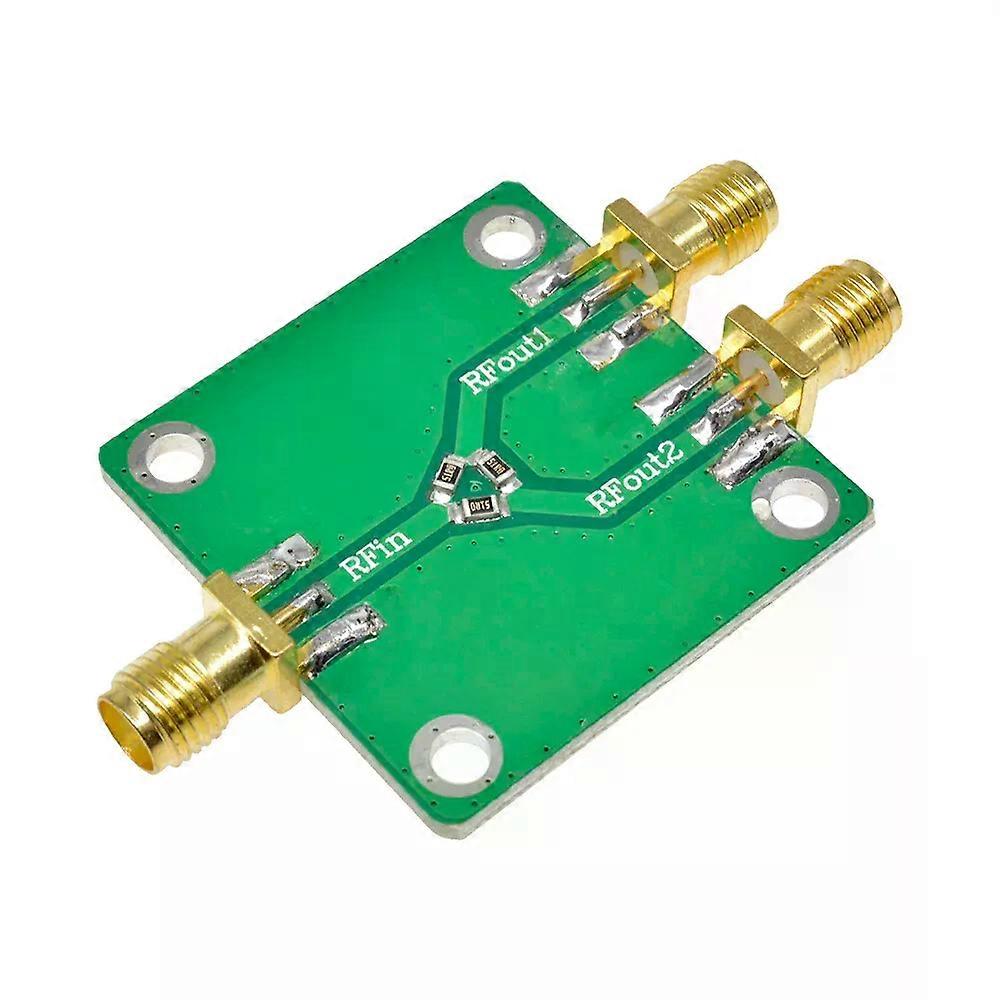

1 split 2 DC-5G Power Splitter 100-2700M Frequency RF Microstrip 2-Way One Channel Input Signal Into Two Channel Divider Combine _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 1 split 2 DC-5G Power Splitter 100-2700M Frequency RF Microstrip 2-Way One Channel Input Signal Into Two Channel Divider Combiner _x000D_ _x000D_ _x000D_ DC-5G 6dB _x000D_ _x000D_ _x000D_ _x000D_ Features: _x000D_ Power frequency: DC-5G _x000D_ Output Attenuation: 6dB _x000D_ System Impedance: 50 ohms _x000D_ Withstand power: 0.5W ( 27dBm ) _x000D_ Size: 33*33mm (without connector) _x000D_ Power division channel: 1 minute 2 _x000D_ Connector form: SMA-K (standard female, male screw inner hole) _x000D_ _x000D_ _x000D_ _x000D_ Package includes: _x000D_ 1* power distributor _x000D_ _x000D_ _x000D_ _x000D_ 100-2700MHz _x000D_ _x000D_ _x000D_ _x000D_ Feature: _x000D_ Microstrip power divider The full name of the microstrip power divider is a device that divides the energy of an input signal into two or more outputs of equal or unequal energy. Vice versa, combining the energy of multiple signals into one output. Also called a combiner. A certain degree of isolation should be ensured between the output ports of the power divider. It has the advantages of wide operating frequency, low insertion loss, high gain and isolation, and stable performance. _x000D_ _x000D_ _x000D_ _x000D_ Specification: _x000D_ Impedance: 50Ω _x000D_ Isolation: ≥20dB _x000D_ Insertion loss: ≤1 _x000D_ Phase unbalance: ≤3° _x000D_ Pass-band ripple: ≤0.3dB _x000D_ Maximum input power: 25W _x000D_ Frequency range: 100-2700MHz _x000D_ Standing wave ratio VSWR: ≤1.4 _x000D_ _x000D_ _x000D_ _x000D_ Package includes: _x000D_ 1* power distributor _x000D_ _x000D_ _x000D_
