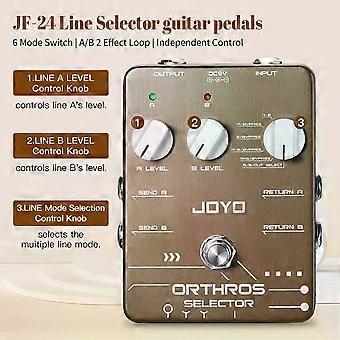

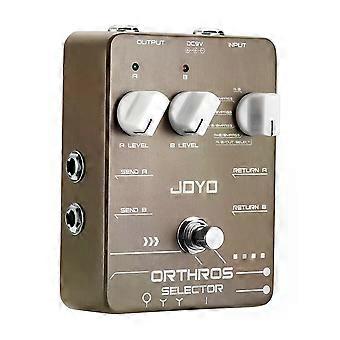

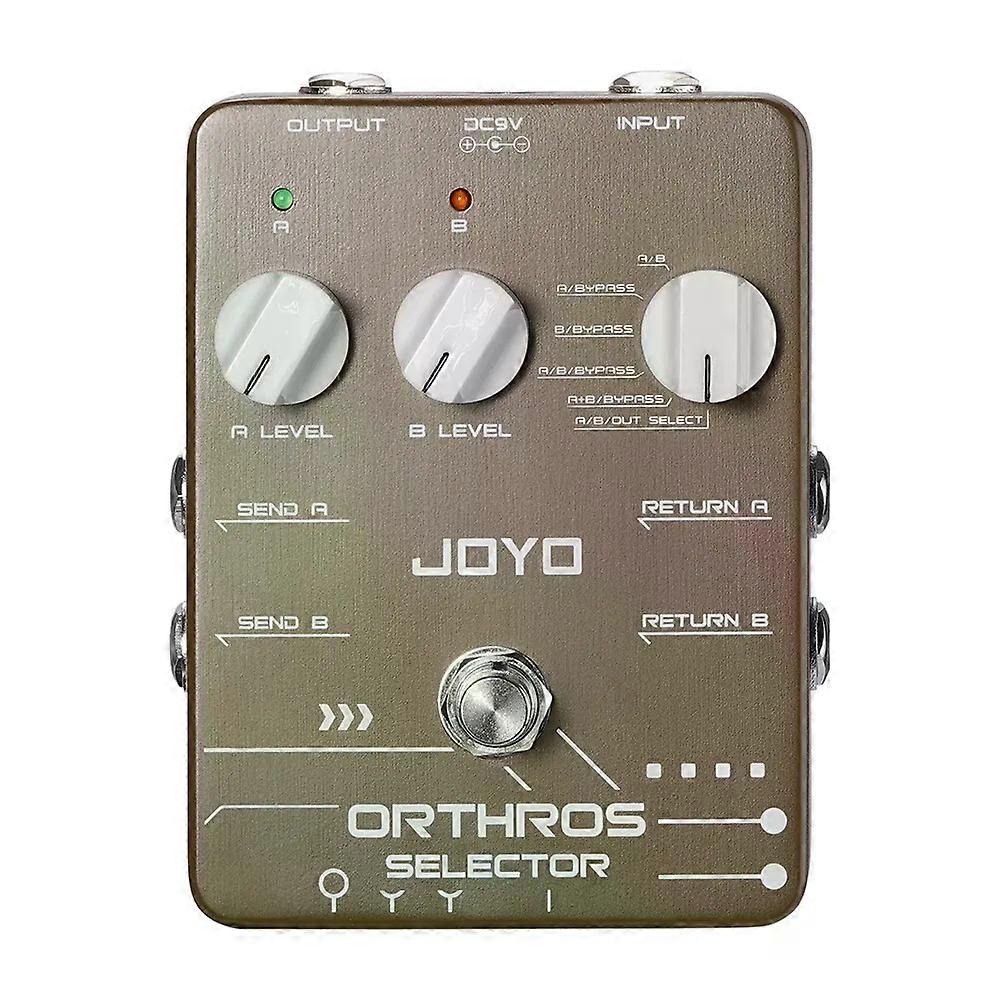

JOYO JF-24 ORTHROS SELECTOR Line Selector Guitar Pedal A/B 2 Line Loops Independent Control Connect Different Effects Pedals Features: - JF-24 is a line selector guitar pedal offers 2 effect loops and 6 Looping modes, flexiblely fit multiple devices and digital pedals. - A/B: 2 line loops can easily be switched to connect different music styles effect pedal chains by Send/Return jack. - 6 mode line selectors can be shift by independent footswitch including A/B, A/BYPASS, B/BYPASS, A/B/BYPASS, A+B/BYPASS, A/B/BYPASS. Quickly Master The Line Selector Such A/B mode (2 choice): Upon power-up, the signal will exclusively route through either Line A or Line B. The LED indicator clearly displays which line is currently active A/BYPASS or B/BYPASS mode: choose to control one of the lines separately A/B/BYPASS (3 choice)：only Line A ,or only Line B,or only BYPASS A+B/BYPASS (2 choice): only Line A and Line B blend (They all have signals), or only BYPASS A/B/Out Selector (3 choice) : only "send A "signal, only "send B"signal, Or only Output signal. Specifications: Working Voltage: DC 9V (center negative) Current Consumption: 22mA INPUT: 1/4" Mono Audio Jack(Impedance 1MΩ) OUTPUT: 1/4" Mono Audio Jack(Impedance 1KΩ) SEND A: 1/4* Mono Audio JackImpedance 1KΩ) SEND B: 1/4* Mono Audio Jack(mpedance 1KΩ) RETURN A: 1/4" Mono Audio Jack(lmpedance 1MΩ) RETURN B: 1/4" Mono Audio Jack(Impedance 1MΩ) Package Included: 1* JF-24 Orthros Selector Guitar Pedal 1* User's Manual Note: - Before you test the pedal or before playing, make sure the guitar is fully connected with the pedal; - More importantly, you need to make sure it meets the working current requirement of each single pedal. - In order to make JOYO pedals work properly, avoiding unexpected noise caused by power supply, we recommend that you purchase a JOYO original power adapter, or choose other reliable s. _x000D_
