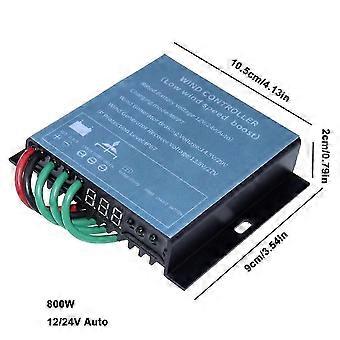

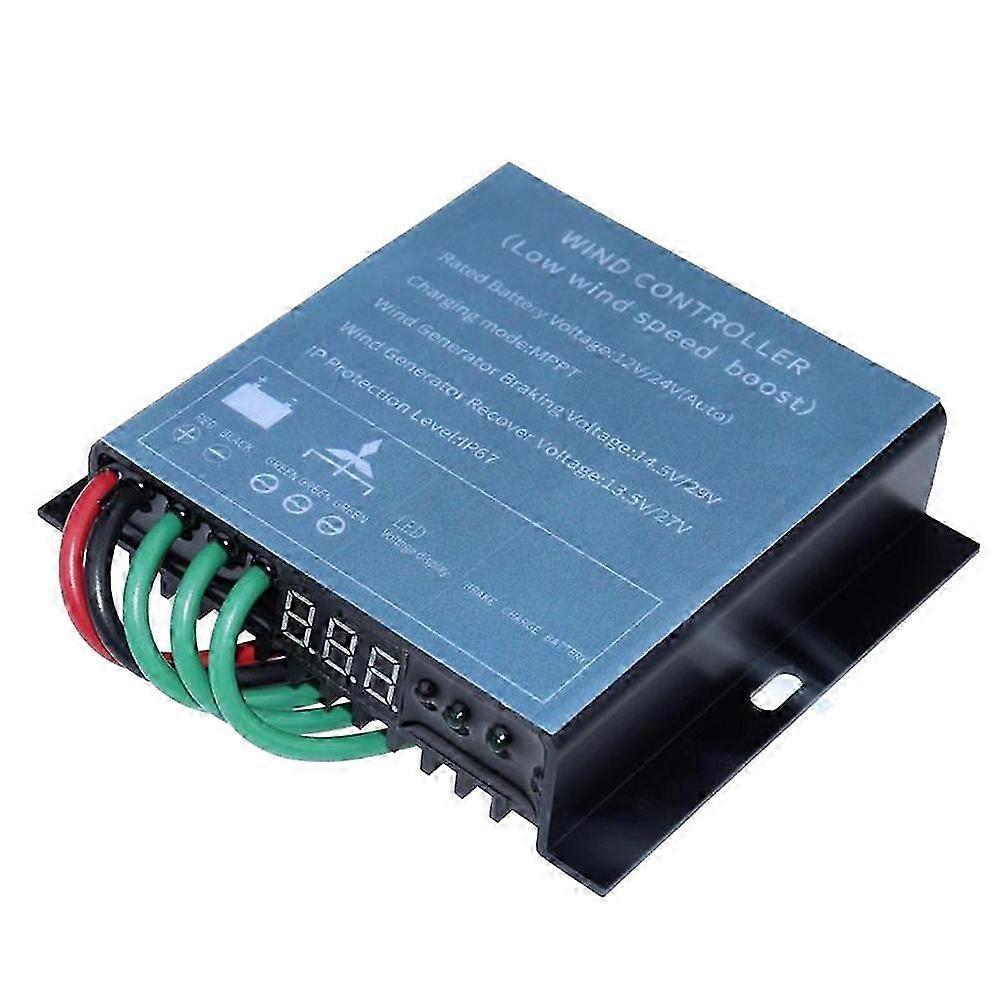

1. Automatically charges the battery. 2. The rectifier and brake circuit use an integrated module, offering improved heat dissipation and reliability compared to traditional designs. 3. Fully sealed and waterproof design with IP67 protection rating. Note: Ensure the wind turbine generator’s output voltage matches the battery’s rated voltage. Connect in the following order: first connect the battery’s positive and negative terminals, then connect the wind turbine’s three-phase output. Always follow the wiring instructions precisely. Reverse polarity or incorrect connections may cause system malfunction or permanent controller damage. Wiring Instructions: 1. Connect the battery’s positive (red) and negative (black) terminals to the corresponding battery terminals on the controller. 2. Connect the wind turbine’s three-phase output wires (green) to the controller’s three-phase input terminals. Specifications: 1. Maximum input AC voltage: 35V AC 2. Output voltage: 12V / 24V 3. Battery charging cutoff voltage: 14.5V ± 0.3V (12V system) / 29V ± 0.3V (24V system) 4. Maximum charging current: 15A (at 12V) / 10A (at 24V) 5. Wind turbine speed-limit voltage: 14.5V ± 0.3V (12V system) / 29V ± 0.3V (24V system) 6. Protection rating: IP67 7. Static current consumption: 0.008A 8. Rated power handling: 800W 9. Maximum operating wind speed: Level 12 10. Operating temperature range: -35°C to +65°C 11. Input wiring: Three-wire configuration 12. Control mode: Compatible with both 12V and 24V systems 13. Mounting method: Bolted installation 14. Never reverse positive and negative connections.
