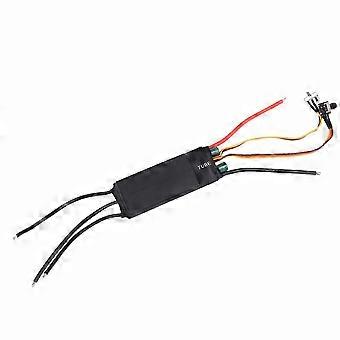

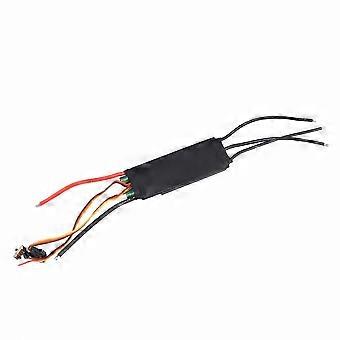

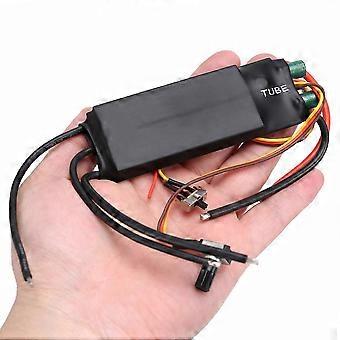

Working voltage: 6–20V (maximum 24V) Drive current: Rated 30A; up to 50A with active air cooling Maximum power: 1000W Overcurrent protection: Yes Locked-rotor protection: Yes (current automatically reduces and operates intermittently after lock-up) Over-temperature protection: Yes (power reduces by 50% when overheated) Maximum speed: 224,000 RPM (2-pole motor), 74,000 RPM (6-pole motor), 40,000 RPM (12-pole motor), 35,000 RPM (14-pole motor) Precautions: 1. Reversing the positive and negative power supply connections on the board may cause permanent damage to onboard components. 2. The motor output includes overcurrent sampling protection. Due to the high power and current rating, do not short-circuit the module output under any condition. During initial wiring tests, use low voltage and low current first. Once verified stable, proceed to higher voltage and current. As this is a bare PCB module, ensure proper insulation of all wiring connections. Avoid direct contact with exposed board components. 3. Do not connect motors with incompatible voltage, current, or power ratings to prevent damage. Model Number: Motor Driver Board Color: As shown Material: Plastic + Metal Package Contents: 1 × DC 6–24V 1000W BLDC 3-Phase Brushless Motor Driver Note: Color appearance may vary slightly due to lighting and screen settings. Dimensional tolerance: ±1–3 cm.
