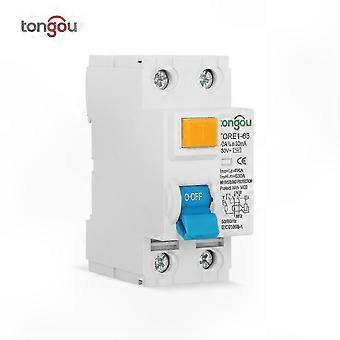

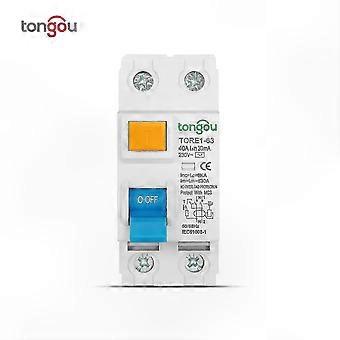

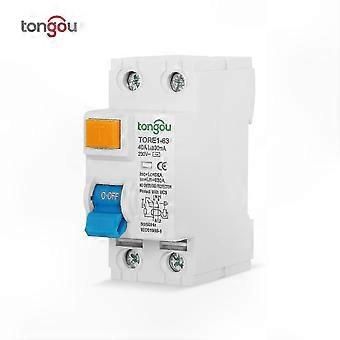

: Residual Current Circuit Breaker (RCCB) – Type: Earth Leakage Origin: Mainland China Customized: Yes Model Number: TORE1-63 Certification: CE Rated Sensitivities: 10mA (electronic type), 30mA / 100mA / 300mA (electromechanical type) Rated Making and Breaking Capacity: 630A Breaking Capacity: 6kA Rated Voltage: 230V AC (default); 110V available upon customization Rated Frequency: 50/60Hz Standard Compliance: IEC/EN 61008-1 This RCCB is designed for use in AC circuits with rated voltage up to 230/400V, frequency 50/60Hz, and rated current up to 63A. It provides indirect protection against electric shock by detecting earth leakage currents and disconnecting the circuit when a fault occurs. It also helps mitigate fire hazards caused by persistent earth fault currents, especially where overcurrent protection devices may fail. Important Notes: - This device does not provide overcurrent protection. It must be used in conjunction with a suitable Miniature Circuit Breaker (MCB). - Power supply input must be connected from the top terminals only. Incorrect wiring may damage the unit. - 10mA sensitivity models are intended as supplementary protection against electric shock where primary protection fails. - Designed for household and similar non-professional applications; no maintenance required. - Does not protect against direct contact between live conductors or leakage between them. - Surge protection devices are recommended upstream of the RCCB to guard against transient overvoltages. - Models equipped with ON/OFF indication may serve as isolation devices when meeting applicable standards. Features: - Flame-retardant thermosetting enclosure - Visual trip indicator (red window displays during fault tripping) - Ergonomic D-shaped handle for comfortable operation - Cold- and heat-resistant construction - Compatible with standard busbar mounting - Complies with IEC/EN 61008-1 and certified to CE and CB standards - Mechanical life: ≥20,000 operations - Electrical life: ≥10,000 operations at rated current and maximum working voltage - Input connection from top side enables simple, secure wiring Note: Color and dimensions may vary slightly due to lighting, screen settings, and manual measurement tolerances.
