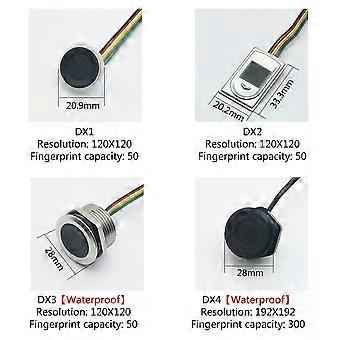

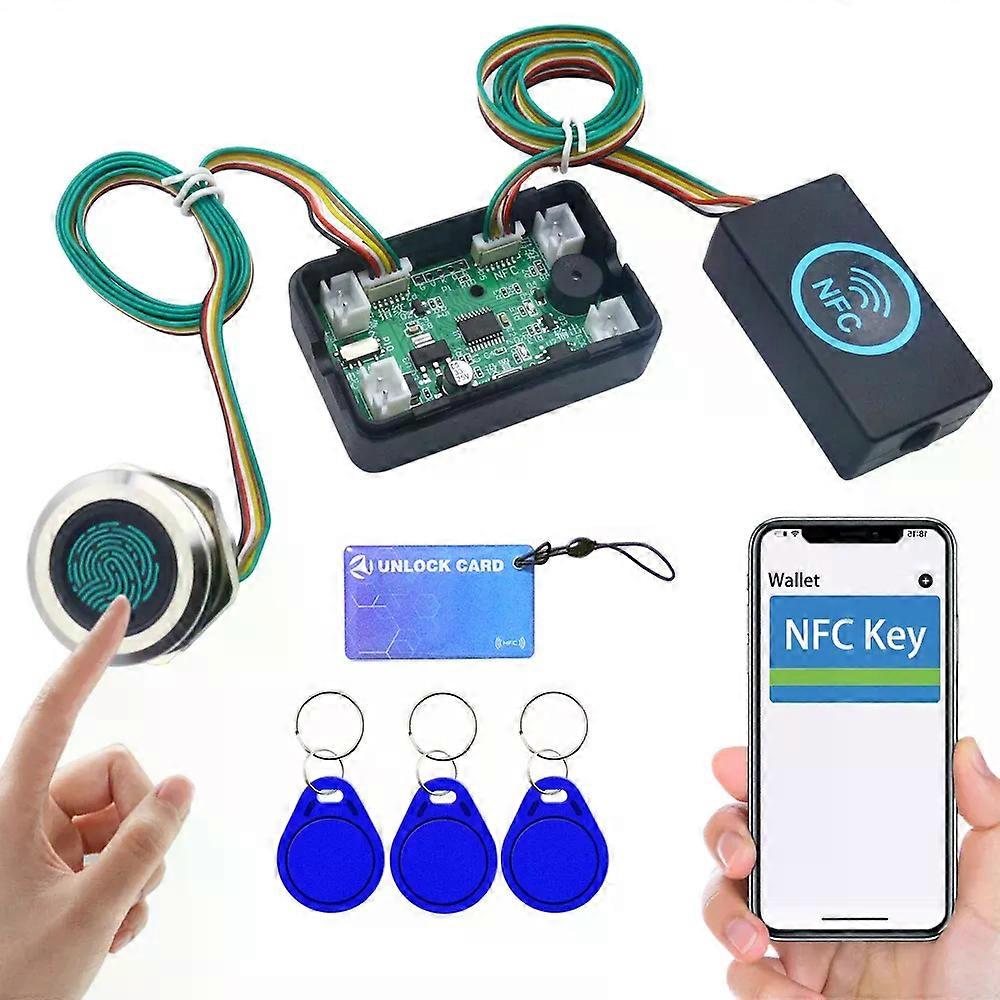

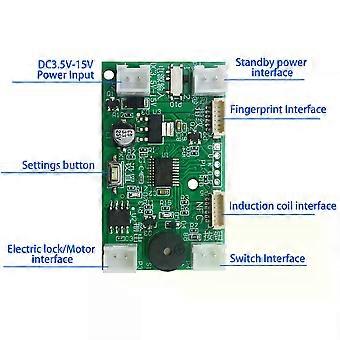

DC3V-15V fingerprint access control electric lock control board door lock electromagnetic lock motor IC card induction module Multifunctional electric lock/motor control board; Support IC card/fingerprint/mobile phone NFC card verification method; Can control normally open and normally closed electric locks and motors; Various control modes, suitable for access control electric lock control, lockers, display cabinets and other scenes Features: 1. Compatible with DC3.5V-15V voltage range; 2. Three verification methods: fingerprint, IC card, mobile phone NFC card 3. Six control modes can be switched: inching mode, self-locking mode, ignition mode; Motor automatic forward and reverse mode; Motor manual forward and reverse mode, magnetic lock mode. 4. In the jog mode, the output time can be adjusted, and the maximum output is 10; 5. The output mode is voltage output (the output voltage is the same as the input voltage) 6.IC card/NFC sensing distance: ≥ 25mm 7. Can be connected to the exit button Three control modes: 1.self-locking mode: At this time, press your finger to turn it on, release your finger and press the fingerprint again to turn it off. 2.jog mode:At this time, press your finger to turn it on, and after releasing your finger, it will automatically turn off after reaching the set delay time (the default is to turn off after 1 second) 3. Ignition mode: At this time, press and hold your finger and it will remain open, and it will be disconnected after releasing your finger. 4. Automatic forward and reverse rotation mode of the motor: after each successful unlocking, the motor stops after the forward rotation output for 2S, and after waiting for 3S, the automatic reverse rotation output stops after 2S. 5. Manual forward and reverse rotation mode of the motor: after the unlocking is successful, the motor stops after the forward rotation output for 2S, and after the unlocking is successful again, the automatic reverse rotation output stops after 2S. 6.magnetic lock control mode: after power-on, the electric lock interface defaults to the output voltage. After the unlocking is successful, the electric lock interface stops outputting the voltage for 2 seconds, and then automatically continues to output the voltage. Note:The management card and user card have been configured before delivery, and the package can be used directly after receiving the package, and does not need to be configured again. Note: If you use your phone's NFC card to unlock, your phone must support NFC; and your phone itself needs to support adding a door card key; NFC applications downloaded from third-party markets are not compatible. Packing list: Control board + shell x1, induction antenna x1, management card x1, user card x3 (Fingerprint sensor according to your favorite style to choose to buy) _x000D_
