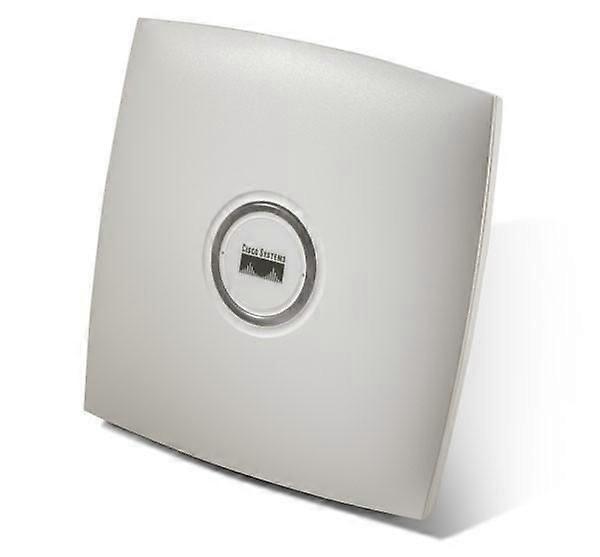

Product Overview Cisco ® Aironet ® 1130AG Series IEEE 802.11a/b/g access points provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. With high-performing dual IEEE 802.11a and 802.11g radios, the Cisco Aironet 1130AG Series provides a combined capacity of up to 108 Mbps to meet the needs of growing WLANs. Hardware-assisted Advanced Encryption Standard (AES) or temporal key integrity protocol (TKIP) encryption provides uncompromised support for interoperable IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2) or WPA security. The Cisco Aironet 1130AG Series uses radio and network management features for simplified deployment, along with built-in omnidirectional antennas that provide robust and predictable WLAN coverage for offices and similar RF environments. The competitively priced Cisco Aironet 1130AG Series is ready to install and easy to manage, reducing the cost of deployment and ongoing maintenance. The Cisco Aironet 1130AG Series is available in two versions: unified or autonomous. Unified access points operate with the Lightweight Access Point Protocol (LWAPP) and work in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). When configured with LWAPP, the Cisco Aironet 1130AG Series can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS ® Software and may optionally operate with the CiscoWorks Wireless LAN Solution Engine (WLSE). Autonomous access points, along with the CiscoWorks WLSE, deliver a core set of features and may be field-upgraded to take advantage of the full benefits of the Cisco Unified Wireless Network as requirements evolve. The Cisco Aironet 1130AG Series delivers optimal value for offices and similar environments. Built-in antennas provide omnidirectional coverage specifically designed for today's open workspaces. A multipurpose mounting bracket easily secures Cisco Aironet 1130AG Series access points to ceilings and walls. With an unobtrusive design, Cisco Aironet 1130AG Series access points are aesthetically pleasing and blend into their environments. For maximum concealment, the access point may be placed above ceilings or suspended ceilings. The UL 2043 rating of the Cisco Aironet 1130AG Series allows the access point to be placed above ceilings in plenum areas regulated by municipal fire codes. Offered at a competitive price, and optimized for easy installation and operation, the Cisco Aironet 1130AG Series helps organizations attain a lower total cost of ownership. Applications In offices and similarly open environments, Cisco Aironet 1130AG Series access points may be installed on the ceiling to provide users with continuous coverage as they roam throughout a facility. In school buildings and similar facilities, the access points may be installed on the ceiling of each room and hallway to provide users with full coverage and high network availability. In areas where a ceiling installation may not be practical such as retail hotspots or similar small facilities, the access points can be mounted simply and securely on walls for complete coverage with minimal installation cost. Award-Winning Security The Cisco Aironet 1130AG Series has achieved National Institute of Standards and Technology (NIST) FIPS 140-2 level 2 validation and is in process for Information Assurance validation under the National Information Assurance Partnership (NIAP) Common Criteria program. The Cisco Aironet 1130AG Series supports 802.11i, Wi-Fi Protected Access (WPA), WPA2, and numerous Extensible Authentication Protocol (EAP) types. WPA and WPA2 are the Wi-Fi Alliance certifications for interoperable, standards-based WLAN security. These certifications support IEEE 802.1X for user-based authentication, Temporal Key Integrity Protocol (TKIP) for WPA encryption, and Advanced Encryption Standard (AES) for WPA2 encryption. These certifications help to ensure interoperability between Wi-Fi-certified WLAN devices from different manufacturers. The Cisco Aironet 1130AG Series hardware-accelerated AES encryption supports enterprise-class, government-grade secure encryption over the WLAN without compromising performance. IEEE 802.1X authentication helps to ensure that only authorized users are allowed on the network. Backward compatibility and support for WPA client devices running TKIP, the RC4 encryption algorithm, is also supported by the Cisco Aironet 1130AG Series. Antenna: - Antenna features: Integrated antenna Design: - Internal: No - LED indicators: Yes Features: - 2.4 GHz: Yes - 5 GHz: Yes - Ethernet LAN data rates: 10/100 - Frequency band: 2.4, 5 - Maximum data transfer rate: 54 - Maximum indoor range: 137 - Maximum outdoor range: 290 - Modulation: BPSK/CCK/DBPSK/DQPSK/DSSS/OFDM/QPSK - Networking standards: IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/IEEE 802.11i/IEEE 802.1x/IEEE 802.3af Management features: - Firmware upgradeable: Yes - Web-based management: Yes Operational conditions: - Operating altitude: 0 - 2500 - Operating relative humidity (H-H): 10 - 90 - Operating temperature (T-T): 0 - 40 - Storage temperature (T-T): -40 - 70 Performance: - Flash memory: 16 - Internal memory: 32 Ports & interfaces: - WAN connection: Ethernet (RJ-45) Power: - AC input voltage: 48 - Input voltage: 48 - Power consumption (typical): 12.2 - Power over Ethernet (PoE): Yes Security: - Security algorithms: 128-bit WEP/40-bit WEP/EAP/EAP-FAST/EAP-SIM/EAP-TLS/EAP-TTLS/LEAP/MSCHAPv2/PEAP/TKIP/WEP/WPA/WPA2 Vendor information: - Brand Name: Cisco - Warranty: 1 - Product.Details.Specifications.Level1: Network - Product.Details.Specifications.Level2: Wireless Network - Product.Details.Specifications.Level3: Wireless Access Points
