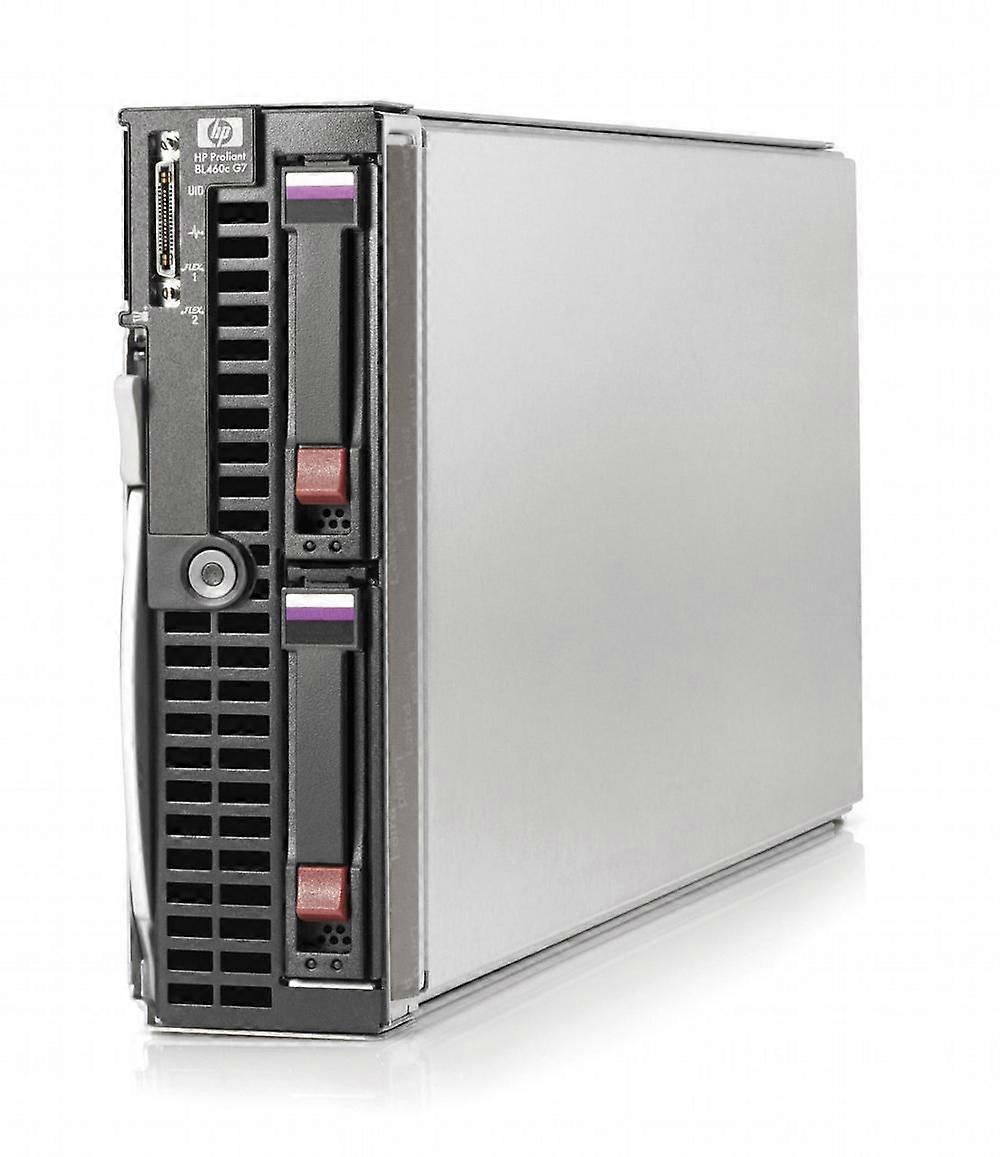

As the world's most popular blade, the HP ProLiant BL460c G7 Server offers the ideal balance of performance, scalability, and expandability to make it the standard for data center computing. Packing two processors, two hot plug hard drives, up to 384 GB of memory, and a dual-port FlexFabric adapter into a half-height blade, the BL460c gives IT managers a single platform that can handle any business applications. Dense Compute Power - Up to two (2) two-, four-,or six-core Intel® Xeon® 5500 or 5600 series processors - 12 DIMM slots supporting up to 384 GB of DDR-3 memory with Advanced ECC - HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance - Up to two (2) hot plug small form factor (SFF) SAS, SATA, or SSD drives - Internal USB and SD card slots enable simple, flexible hypervisor deployments Integrated HP Virtual Connect FlexFabric Support - Embedded dual-port 10 Gb FlexFabric adapter delivers high bandwidth for network intensive applications - Simplify management and lower infrastructure costs by converging LAN and SAN traffic over the same flexible connection - Up to eight (8) connections to network and storage without the need for add-in mezzanine cards - Divide and fine-tune network and storage bandwidth to match application requirements Industry-leading Infrastructure Management - Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3) - Deploy servers quickly, proactively manage virtual or physical server health, and optimize power consumption with HP Insight Control - Rapidly provision, continuously analyze, and confidently optimize your converged server infrastructure with HP Insight Dynamics Design: - Chassis type: Blade Expansion slots: - PCI Express x8 slots: 2 Memory: - Internal memory: 6 - Internal memory type: DDR3-SDRAM - Maximum internal memory: 384 - Memory clock speed: 1333 - Memory layout (slots x size): 3 x 2 - Memory slots: 12 Network: - Ethernet LAN: Yes - Network ready: Yes Operational conditions: - Non-operating altitude: 0 - 9144 - Operating altitude: 0 - 3050 - Operating relative humidity (H-H): 10 - 90 - Operating temperature (T-T): 10 - 35 - Storage relative humidity (H-H): 5 - 95 - Storage temperature (T-T): -30 - 60 Other features: - Disk array controller: P410i - Graphics card: G200 - Graphics card family: Matrox Ports & interfaces: - Ethernet LAN (RJ-45) ports: 3 - PS/2 ports quantity: 0 - Serial ports quantity: 0 - USB 2.0 ports quantity: 0 Power: - Number of power supply units: 0 Processor: - Bus type: QPI - Conflict-Free processor: No - CPU multiplier (bus/core ratio): 20 - ECC supported by processor: Yes - Embedded options available: No - Execute Disable Bit: Yes - FSB Parity: No - Idle States: Yes - Maximum internal memory supported by processor: 288 - Maximum number of SMP processors: 2 - Memory bandwidth supported by processor (max): 32 - Memory channels supported by processor: Triple - Memory clock speeds supported by processor: 1066/1333/800 - Memory types supported by processor: DDR3-SDRAM - Motherboard chipset: Intel® 5520 - Number of processors installed: 1 - Number of QPI links: 2 - Physical Address Extension (PAE): 40 - Processor boost frequency: 3.06 - Processor cache: 12 - Processor cache type: Smart Cache - Processor code: SLBV3 - Processor codename: Westmere EP - Processor cores: 6 - Processor family: Intel® Xeon® 5000 Sequence - Processor frequency: 2.66 - Processor lithography: 32 - Processor manufacturer: Intel - Processor model: X5650 - Processor operating modes: 64-bit - Processor package size: 42.5 X 45 - Processor series: Intel Xeon 5600 Series - Processor socket: Socket B (LGA 1366) - Processor system type: DP - Processor threads: 12 - Stepping: B1 - Supported instruction sets: SSE4.2 - System bus rate: 6.4 - Tcase: 81.3 - Thermal Design Power (TDP): 95 - Thermal Monitoring Technologies: No Processor special features: - CPU configuration (max): 2 - Enhanced Intel SpeedStep Technology: Yes - Intel 64: Yes - Intel Clear Video Technology: No - Intel Demand Based Switching: Yes - Intel Dual Display Capable Technology: No - Intel Enhanced Halt State: Yes - Intel Fast Memory Access: No - Intel FDI Technology: No - Intel Flex Memory Access: No - Intel Rapid Storage Technology: No - Intel Trusted Execution Technology: Yes - Intel Virtualization Technology (VT-x): Yes - Intel Virtualization Technology for Directed I/O (VT-d): Yes - Intel VT-x with Extended Page Tables (EPT): Yes - Intel® AES New Instructions (Intel® AES-NI): Yes - Intel® Anti-Theft Technology (Intel® AT): No - Intel® Clear Video HD Technology (Intel® CVT HD): No - Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): No - Intel® Hyper Threading Technology (Intel® HT Technology): Yes - Intel® Insider™: No - Intel® InTru™ 3D Technology: No - Intel® My WiFi Technology (Intel® MWT): No - Intel® Quick Sync Video Technology: No - Intel® Turbo Boost Technology: 1.0 - Intel® Wireless Display (Intel® WiDi): No - Processor ARK ID: 47922 Software: - Operating system installed: No Storage: - Maximum storage capacity: 2 - Number of HDDs installed: 0 - Number of HDDs supported: 2 - Optical drive type: No - RAID levels: 0/1 - RAID support: Yes - Total storage capacity: 0 Vendor information: - Brand Name: Hewlett Packard Enterprise - Warranty: 1 - Product.Details.Specifications.Level1: Server, Computer & Printer Parts - Product.Details.Specifications.Level2: Servers & Computers - Product.Details.Specifications.Level3: Servers - Product.Details.Specifications.Level4: Servers
