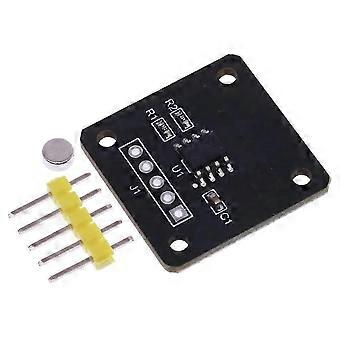

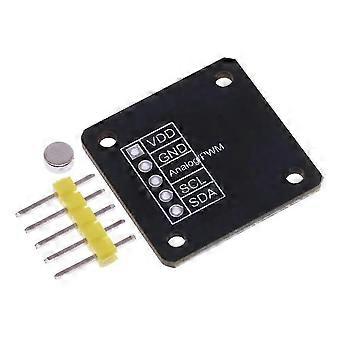

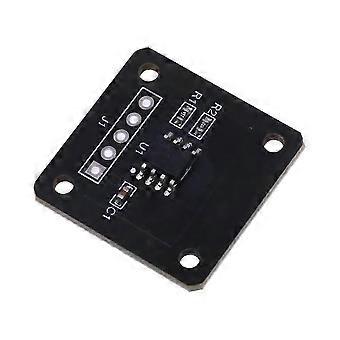

Based on differential Hall technology, absolute Angle measurement from 0° to 360° is provided Operating voltage 3.3-5.0V, operating temperature -40℃-125℃ Typical linearity deviation Less than ±1°, Less than ±1.5° over the whole temperature range System delay is as low as 5us and can support speeds up to 55,000 RPM Provides I²C/SSI interface to read 14-bit Angle data inside the chip MT6701 is a generation of magnetic Angle encoder chip based on differential Hall induction principle. MT6701 senses the component of the magnetic field perpendicular to the chip surface, and with the rotation of a pair of magnetic radial magnets on the chip surface, The MT6701 corresponding output Angle signal of 0-360°. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute Angle output, the MT6701 provides 14 bit digital Angle output via the I2C/SSI interface. In addition to rotation Angle measurement, the MT6701 also offers a "push" output to enable single-chip button (rotation + press) functionality. Features: Incremental output ABZ supports any resolution of 1 to 1024 lines Incremental output The UVW supports any polarity from 1 to 16 Provides 12-bit PWM output or analog output (12-bit DAC) Dedicated press detection output (sensing changes in magnet and chip spacing) compatible withsingle-chip button applications Built-in EEPROM, Greater than 1000 iterations of programming Color:As Shown Material:PCB Package Contents: 10 * MT6701 Magnetic Encoder Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
