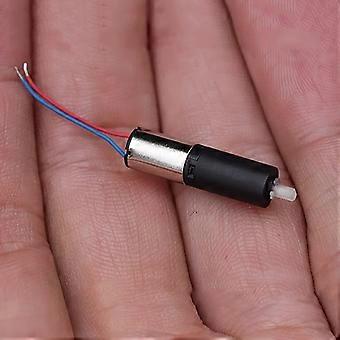

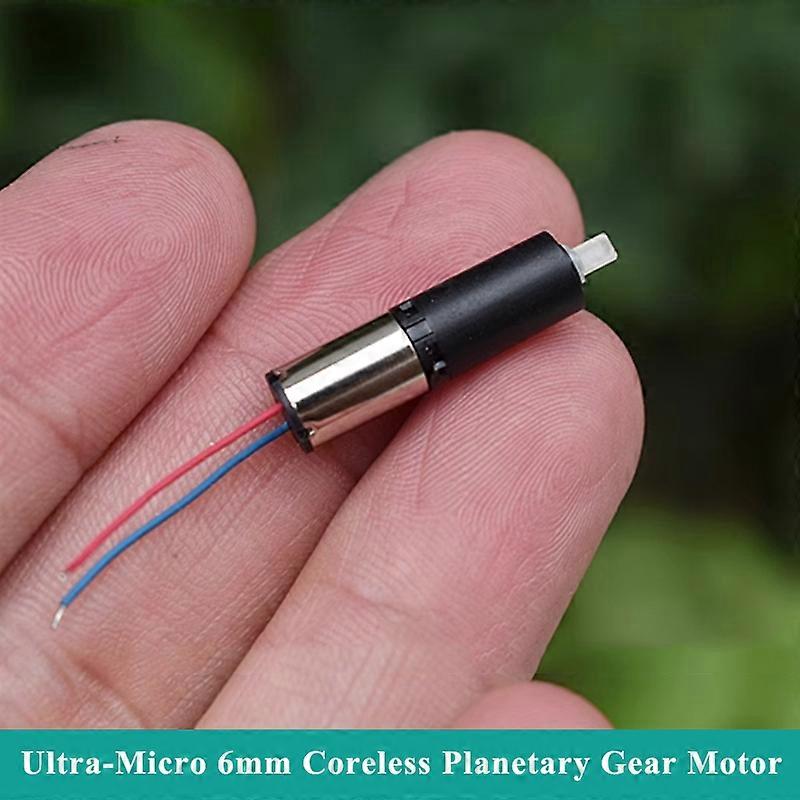

Micro DC Gear Motor 6mm Coreless Planetary 3V-5V 45-75 RPM High Torque for DIY Robot Car 6x10mm(Sonstiges)

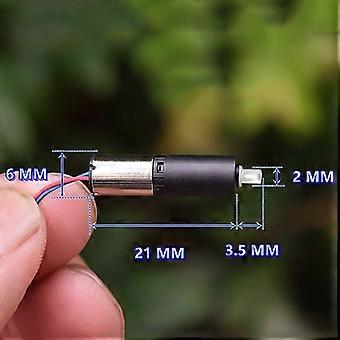

ZWPD006006-700 4-Stage Planetary Gear Motor, 6 mm A compact 4-stage planetary gear motor that delivers high reduction and reliable low-speed torque in a lightweight, space-saving package. This unit is designed for precise, battery-friendly motion in small robots, hobby projects, and miniature mechanisms. Key benefits: - High reduction ratio provides strong output torque and stable low-speed rotation for precise positioning and actuation. - Very small footprint and low weight make it easy to integrate into tight spaces and weight-sensitive designs. - Low no-load current supports battery-powered applications and reduces power consumption in idle conditions. - Broad operating voltage range supports common control electronics and microcontroller projects. - Standard output shaft dimensions allow straightforward mechanical coupling to gears, pulleys, and linkages. Technical specifications: - Model number: ZWPD006006-700. - Gear type: 4-stage planetary gearbox. - Overall gear ratio: approximately 1:700. - Motor diameter: 6 mm, built around a mini 6 mm x 10 mm coreless motor. - Motor length: 21 mm. - Output shaft diameter: 2 mm, compatible with D-shaft 1.5 mm options. - Output shaft length: 3.5 mm. - Cable length: 20 mm. - Weight: 1.5 g. - Nominal voltage: DC 3.0 V. - Suitable operating voltage range: DC 3.0 V to 5.0 V. - Test data at no load and full voltage range: at 3.0 V the no-load current is 20 mA with a no-load speed of 45 rpm, and at 5.0 V the no-load current is 28 mA with a no-load speed of 75 rpm. Applications and use scenarios: - Precision micro-robotics: drives for wheel trains or joint actuators where compact size and high reduction are required. - Camera and sensor mounts: low-speed pan and tilt systems for small cameras, sensors, or gimbals that need smooth, controlled motion. - Hobby and model making: lock mechanisms, miniature conveyors, and animated features in scale models and educational kits. Compatibility and installation notes: - Designed for projects that accept a 6 mm diameter coreless motor form factor and a 2 mm output shaft. - Use appropriate mounting brackets and couplers sized for the 2 mm output shaft or D-shaft 1.5 mm when applicable. - Operate within the recommended voltage range to achieve the listed performance and to avoid premature wear. Package contents: - Motor x 1 piece. This specification-focused motor offers a compact, low-power solution for precise low-speed actuation in small-scale mechanical projects.
