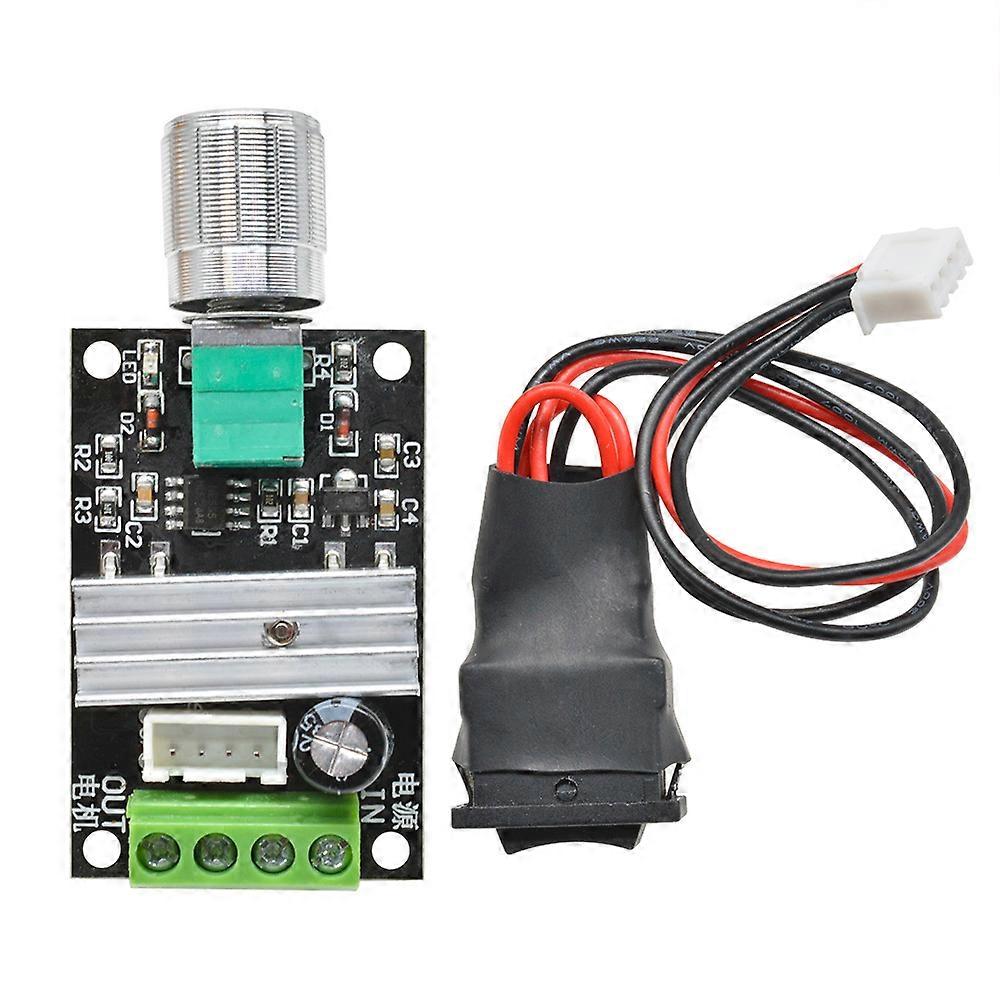

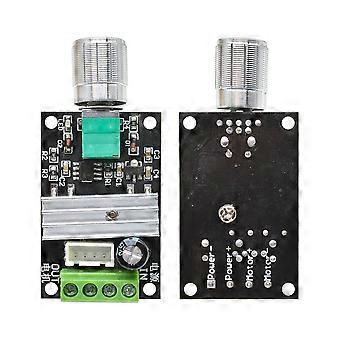

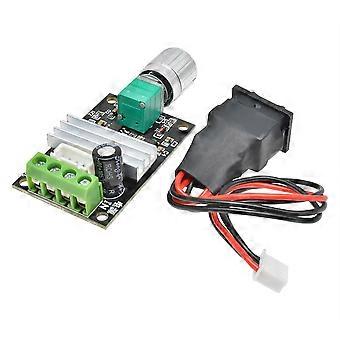

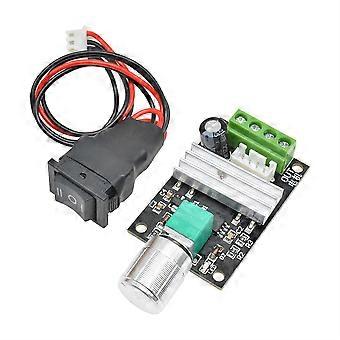

PWM DC Motor Speed Controller 6V 12V 24V 28V 3A 80W with Forward/Reverse Switch 1203BB

1203BB DC Motor Speed Controller (PWM) - Adjustable Reversible 3 A Driver Key benefits - Precise motor speed control using PWM for smooth, efficient operation and reduced motor wear. - Reversible control with a single switch to run forward, reverse, or stop, simplifying wiring and user control. - Protects your equipment with a built in 3 A fuse and reverse polarity protection to help prevent damage from incorrect wiring. - Compact metal housing and small footprint make it easy to install in tight spaces. What it does - Controls the speed of DC motors or other DC loads by adjusting pulse width modulation. - Supplies a continuous output current of up to 3 A with rated power up to 80 W. - Forward, reverse, and stop are controlled by the included switch; a potentiometer with integrated switch adjusts speed. - Status LED indicates power and relative motor speed. Specifications - Model: 1203BB - Material: Metal - Size: 5 x 3.2 x 1.5 cm - Input voltage: DC 6 to 28 V - Continuous output current: 3 A - Rated power: 80 W - Protective features: 3 A fuse and reverse polarity protection - Switch cable length: 15 cm How to install and use 1. Ensure power is turned off before wiring the controller. 2. Connect the wires according to the wiring diagram. 3. Turn on the power and use the potentiometer to set the desired speed. The LED indicates power on and shows motor speed changes. Important warning - Do not swap the positive and negative motor leads. Reversing the load polarity will damage the controller. Practical applications - Small robotics and hobby projects that require variable speed and reversible motor control. - Model vehicles, fans, and small conveyor systems operating on 6 V to 28 V DC. - DIY automation or prototype fixtures where compact, reliable speed control is needed. Package contents - 1 x 1203BB 6 V 12 V 24 V 3 A 80 W DC Motor Speed Controller PWM Adjustable Reversible Motor Driver Switch. This controller provides compact, adjustable, and reversible DC motor control with built in protection for reliable use in a variety of small DC applications.
