ECG Module Dual-Channel Monitoring with 24-Bit Precision

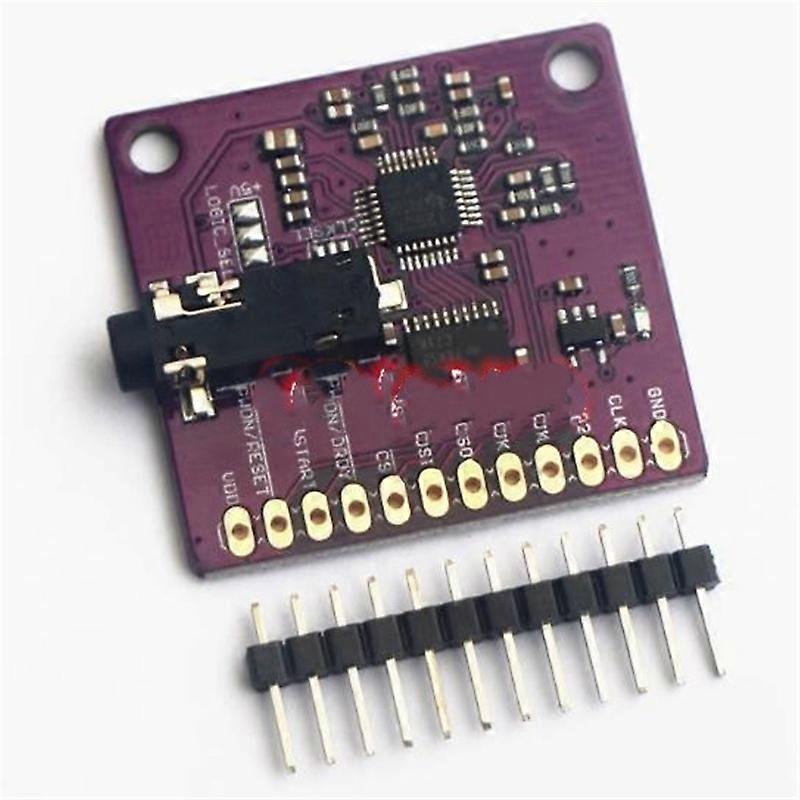

CJMCU-1292 ADS1292R 2-Channel 24-Bit ADC Module for ECG and Respiratory Impedance Description This compact CJMCU-1292 breakout features the ADS1292R integrated front end for high-resolution biopotential acquisition and respiratory impedance measurement. It provides two simultaneous 24-bit channels suited for prototyping, research, teaching, and embedded sensor systems that require reliable analog to digital conversion of ECG style signals and thoracic impedance changes. Key benefits - High resolution capture: Two 24-bit ADC channels deliver fine amplitude resolution for clear signal representation and accurate downstream processing. - Dual-function sensing: Designed to support both ECG style biopotentials and respiratory impedance measurement using the same front end, reducing the need for multiple devices. - Rapid integration: Breakout form factor simplifies wiring and mounting into microcontroller and single board computer projects for faster prototyping. - Clean signals for processing: The module provides stable, high fidelity raw data that makes filtering and feature extraction more straightforward during algorithm development. - Small footprint: Compact PCB layout enables use in constrained enclosures and wearable prototypes. Features and important attributes - Function: Two-channel analog to digital conversion for ECG style signals and respiratory impedance measurement. - Resolution and performance: 24-bit ADC per channel for high dynamic range and detailed signal analysis. - Compatibility: Designed for easy interfacing with common development platforms and microcontrollers via standard serial peripheral interfaces and general purpose digital lines. - Form factor and materials: PCB breakout with standard pin headers for soldering or breadboard use, suitable for rapid prototyping and integration. - Useability: Module provides access to raw channel data and control lines needed for leads-off detection and signal management during experiments. Practical use scenarios - Prototype physiological signal capture for algorithm development: Use the module to record ECG style waveforms and thoracic impedance changes while developing signal processing and classification routines. - Wearable or portable device prototyping: Integrate the compact breakout into battery powered measurement prototypes or wearable research rigs where space and weight are limited. - Educational labs and demonstrations: Provide students with a hands-on component to explore biopotential acquisition, filtering, and digital signal processing without designing a custom analog front end. Why choose this module This breakout combines a focused set of functions needed for biopotential and respiration impedance projects into an accessible module that speeds development and reduces hardware design time. It is intended for engineering, research, and educational applications where reliable high resolution ADC performance and dual sensing capability are required. Specifications summary - Model: CJMCU-1292 with ADS1292R front end. - Channels: 2 simultaneous channels. - Resolution: 24-bit analog to digital conversion. - Primary functions: ECG style biopotential acquisition and respiratory impedance measurement. - Integration: Breakout style PCB with pin headers for easy connection to microcontrollers and data acquisition systems. This module is provided for electronic development and measurement projects and is not a substitute for certified medical instruments.
