Wifi Lora 32 V4-R8 Dev-Board Esp32-S3r8 Sx1262 0.96inch OLED BLE Node with Case Battery Compatible with Meshtastic, 96inchLJJ

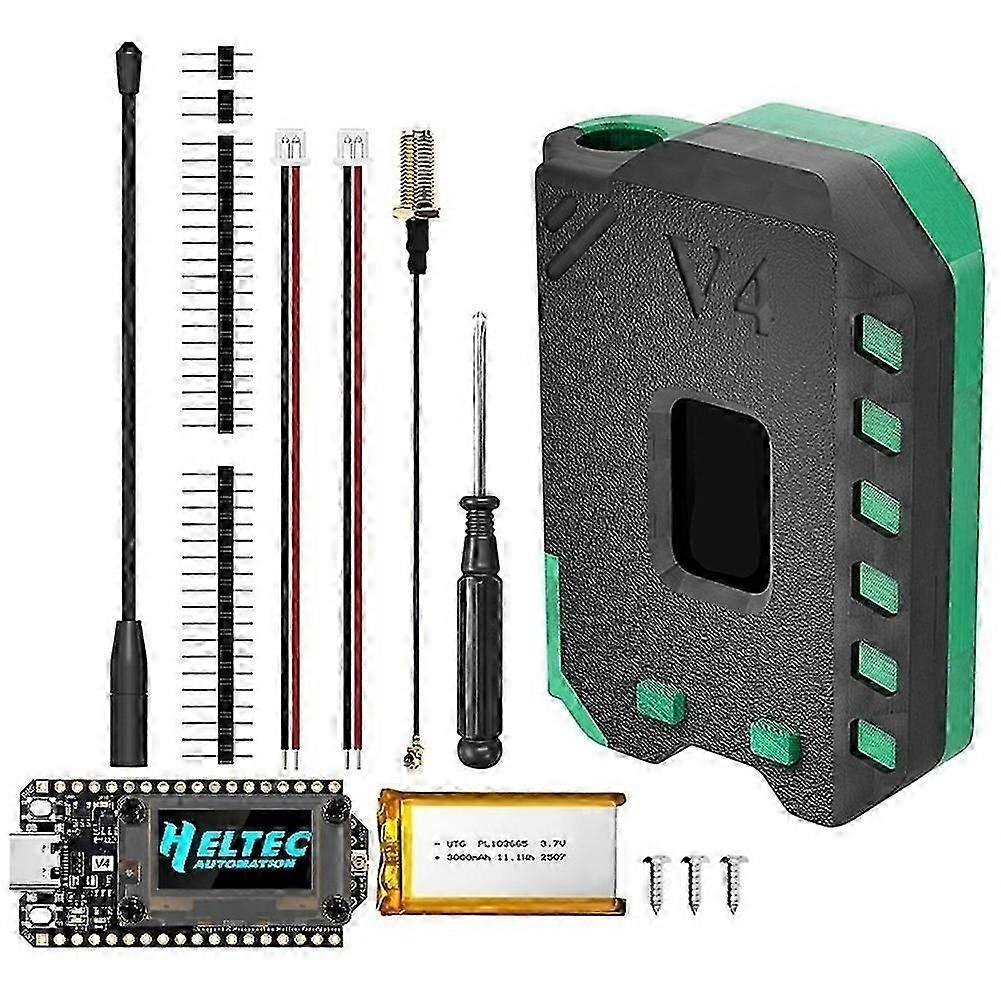

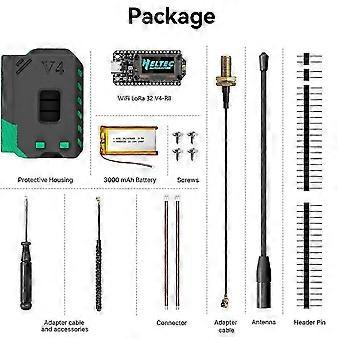

Features The WiFi LoRa 32 now comes with the latest ESP32-S3R8 version. Base on ESP32-S3R8 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication. LoRa Transmit Power: 28 dBm Form factor and pin compatibility with WiFi LoRa 32 V3. Casing protects the screen and integrates FPC 2.4G antenna. Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface. Optimized lithium battery management. Low power consumption is less than 20μA. Specifications Version: WiFi LoRa 32 V4-R8 MCU: ESP32-S3R8 LoRa Chip: SX1262 Frequency: 863-928MHz Wi-Fi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB PSRAM; 16MB Flash Interface Type-C USB; 1.25*2 Pin lithium battery interface; 1.25*2 Pin Solar interface; 1.25*8 Pin interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0) Battery applicable: 3.3-4.4V lithium battery Operating Temperature: -20 ~ 70 ℃ Color: Black Material: PCB+Plastic+Metal Package Contents: 1*Development board 1*3000mAh Battery 1*shell 1 set of accessories (Random color) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
