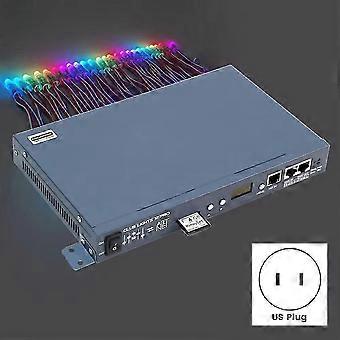

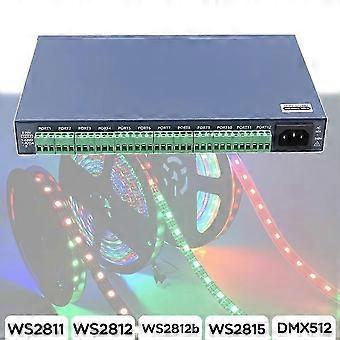

12-port color controller from Resolume Artnet to SPI Pixel Controller, compatible with WS2811, WS2812, WS2815 and DMX512 for LED strips (US connector)

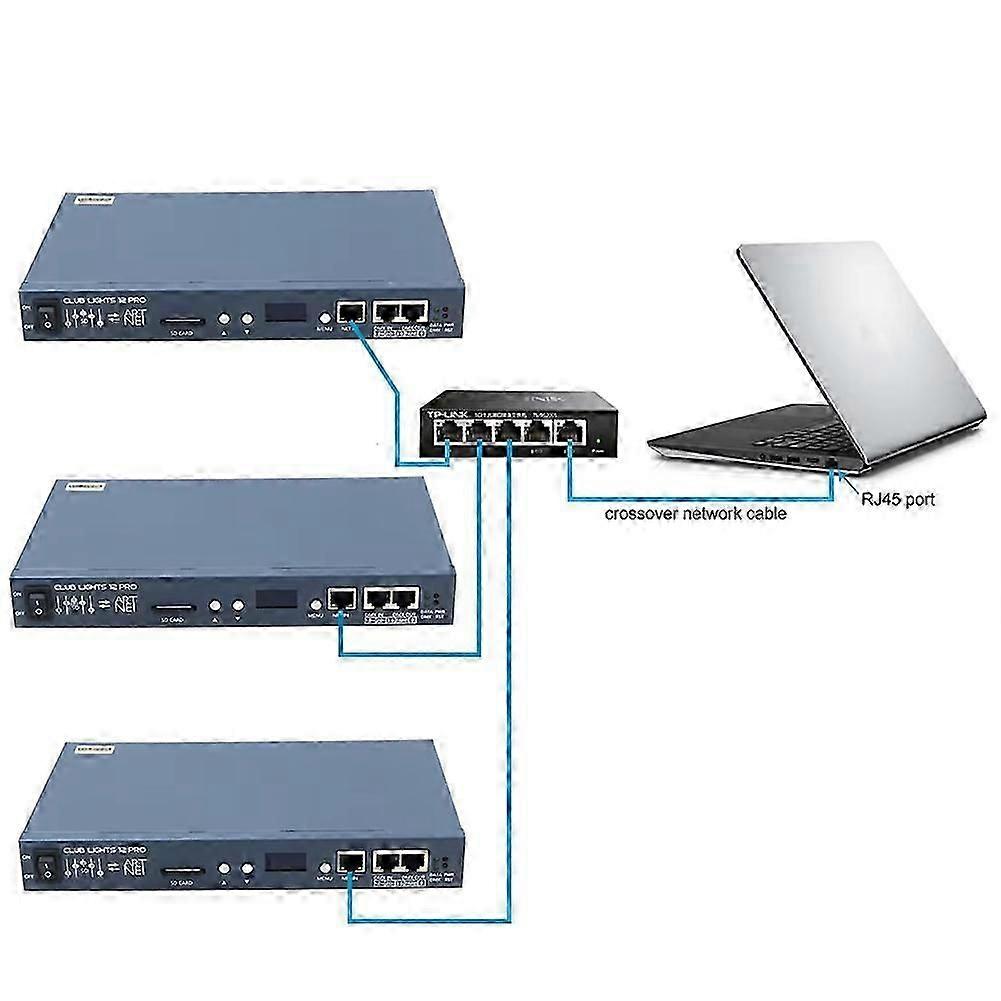

Introduction: This is a 12-port online or SD card offline controller. With 12 groups of output ports, can support DMX512, SPI type lamps, such as: TM1812, WS2811, UCS2903, UCS9812, SM17512 and other IC widely used in the industry. The Controller uses FPGA as the core processor, and realizes high load, high frame rate, high gray scale and high synchronization control with the super parallel data computing capability of FPGA. The realization of a single station carrying 12K pixel point is very conducive to the construction of the engineering site wiring. The controller has an Ethernet interface, supports ART-NET, GC-NET standards,Users can connect to the controller via Ethernet and preview online. In ART-NET mode,support 72 DMX512 universes. The controller has external DMX512 trigger function, can access control console and KTV intelligent lighting control box, very suitable for bar, KTV room lighting control, accept the command call program, adjust speed, brightness, special effects, support up to 13 channels OF DMX512 instruction. The controller supports the multi-function editing software "ShadowDraw" independently developed by our factory, Polar Color technology provides software tools that allow users to simply record M5.0 effect files for offline playback. it has been widely used in KTV, bars, office buildings, hotels, shop signs and other LED lighting projects. Support MIX,Grouping by external DMX512 console. Support M5.0 online Preview, can record ARTNET scene files. Support LEDview online Preview, can Generate SD scene file. Can be triggered by external DMX512 console for extended use. Support SD cards of various capacities, such as 128M-32GB, and supports a maximum of 64 scenario files. Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines and so on. Voltage: AC 90-240V Color: As shown Material: plastic Function Features: FPGA as the core processor, to achieve high load, high speed, high gray, high synchronizatiPlease pay attention to the model number and size when purchasing.
