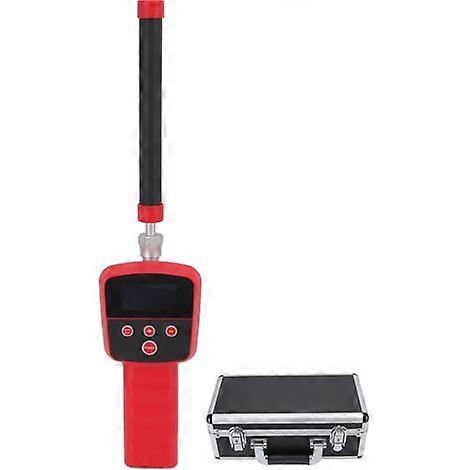

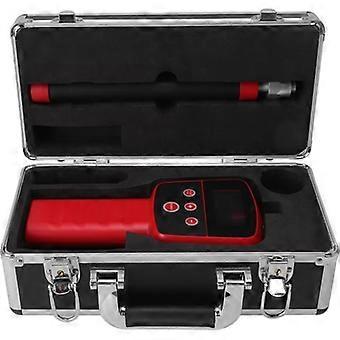

512Hz Pipe Locator Receiver Sewer Camera Transmitter Probe with LED Screen for Underground Exploration

Features:1.Built-in Induction Coil: The receiver has a built-in induction coil to receive the magnetic signal from the pipe. The coil generates an induced current to calculate the orientation and position of the transmitter.2.Wide Application: This product can be used in water supply pipelines, cable pipelines, pipeline vacuum systems, underground pipeline construction, underground cave exploration, underwater research, and other exploration work.3.High Efficiency: Using the 512Hz transmitter, the probe's position can be easily determined.Save time and money and take advantage of this great feature.4.LED Display: This pipeline locator is equipped with an LED display screen. You can view the monitoring data more clearly, conveniently, and practically.5.Premium Material: This 512Hz pipe receiver is made of premium ABS material, suitable for underwater survey work. It is waterproof, robust, and can be used for a long time.Specifications:Item Type: Sewer Camera Locator Material: ABS Gross Weight: 2049g / 72.3oz Working Frequency: 512Hz Modulation: None Batteries: 6 AA batteries (batteries not included) Operating Time: 4 hours (intermittent use) Audio Output: 50-1000Hz depending on signal strength Size: 548x65x50mm / 21.6x2.6x2.0in Sensor: Separate angle sensor for peak and zero signals How to use:General layout1. Power On and Out (Long press to turn on; long press to turn off)2. A near/far switch controls the overall sensitivity. The far position is recommended when you first position the probe. When you are close to the transmitter and the meter goes to full scale and you cannot desensitize it further, switch to the near position for its precise location.3. Meter Indicators: Indicates the peak signal resistance (right) and the 0 signal resistance (left).4. Speaker: Allows you to hear the transmitter signal beeps or a continuous tone, depending on the transmitter's use case.5. Battery indicator: displays the battery health status.6. Instructions for use: Adjust the locator to the nearest or farthest signal and signal strength (+ or -) according to the actual environment to best match the locator to the transmitter.7. It is recommended to set to FAR mode (signal is set to 9) at first. When the LED screen shows the signal is very strong, reduce the signal sensitivity level (you can hear a louder sound at the same time), then you can restrict the detection range. Package List: 1 x Host 1 x Receiver 1 x Manual 1 x Aluminum Case Note: The 512 has only one mode, probe mode. Receiver in polling mode. Look for signals from a small detector or camera with a built-in transmitter that has been routed through conduit. The detector should emit a 512Hz signal, and the receiver can determine the approximate depth of the target. Start by turning on the receiver, walking around, keeping the receiver at waist height and walking in the general direction of the transmitter while slowly scanning the receiver while pointing in the direction of the transmitter.You will notice that the signal will get bigger. As you get closer, reduce sensitivity as needed to keep it within range. Flip the nearby switch when you can't keep the meter below full scale Continue in the direction of a stronger signal. When you get to the point where the signal appears to be strongest, no matter which direction you move will make it weaker, you know you have found a detector just below the center of the mast. Move to another location, look for that spike signal again, and see if you keep coming back to the same location for confirmation. If you follow each step correctly, you should end up on top of the launcher every time. Keep practicing until you get consistent results. The product does not include a transmitter, you need to bring your own 512Hz transmitter for use.
