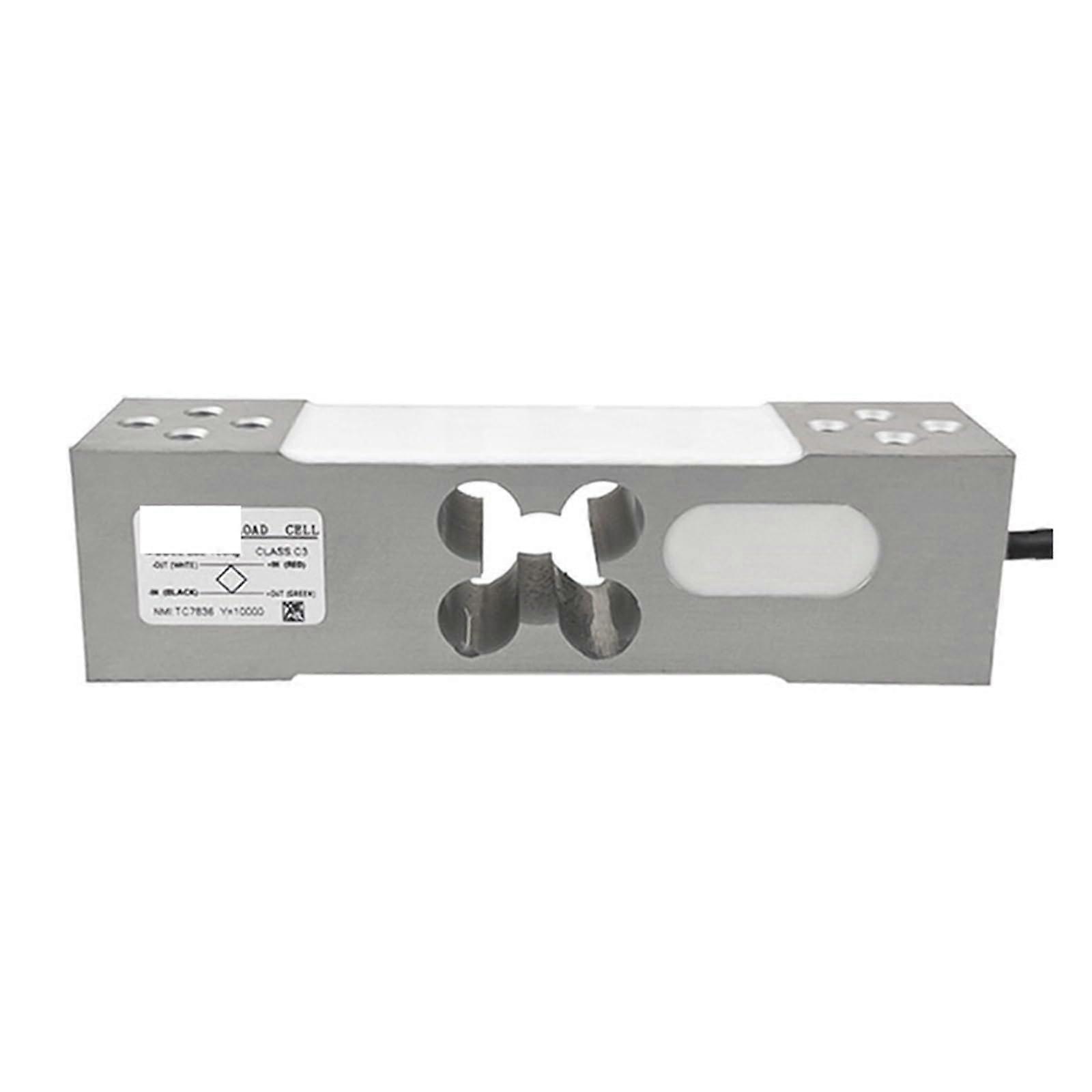

L6E Single Point Load Cell 300kg Precision C3 Weighing Sensor for Industrial Platform Scale

Product: 1pc L6E Load Cell 50500kg Precision Sensor Replacement Color: 300kg Overview A compact, metal singlepoint load cell designed for accurate weight measurement in 50 kg to 500 kg capacity ranges. Precision C3 construction and robust specifications make it suitable for industrial scales, bench scales, and automated weighing systems where stable, repeatable readings are required. Key benefits Accurate measurements: Combined error of ±0.020%FS and precision class C3 provide reliable, repeatable readings for commercial and industrial applications. Wide compatibility: Available for capacities between 50 kg and 500 kg, making it suitable for a variety of scale platforms and sensor replacement needs. Stable signal output: Output sensitivity of 1.02.0 ±0.2 mV/V yields a clear analog signal for common weighing electronics and ADCs. Durable construction: Metal body and broad temperature range support operation in typical industrial environments. Easy integration: Recommended excitation voltage range and standard impedances simplify connection to amplifiers and controllers. Primary specifications Model type: L6E singlepoint load cell Capacity range: 50500 kg (product listed as 300kg) Material: Metal Precision: C3 Maximum number of divisions: 3000 nmax Minimum number of verification divisions: Emax/7000 vmin Combined error: ±0.020%FS Output sensitivity: 1.02.0 ±0.2 mV/V Input impedance: 406 ±6 Output impedance: 350 ±3 Insulation resistance: 5000 (50VDC) (M) Zero point output: 2 (%FS) Temperature compensation range: 10 to +40 (10C) Operating temperature range: 35 to +70 (10C) Recommended excitation voltage: 512 V Maximum excitation voltage: 18 V Safe overload range: 150% FS Why customers choose this load cell Precision and repeatability minimize measurement variability during production, packaging, and quality control processes. Robust output and impedance values ensure compatibility with most weighing amplifiers and control electronics. Wide operating temperature ranges and safe overload capacity increase reliability in harsher or variable environments. Compact metal construction fits common scale platforms and replacement applications where space and durability matter. Typical applications Bench and platform scales: or upgrade load cells in retail or workshop bench scales for improved accuracy and consistency. Industrial weighing and batching systems: Integrate into conveyor or hopper weighing assemblies for material handling, batching, or inventory control. Automated test and measurement equipment: Use in force measurement rigs or test stands where singlepoint loading and clear analog output are required. What is included 1pc L6E load cell (specified capacity, metal construction) Integration notes Match the load cell capacity to your scale platform and mechanical mounting to ensure correct performance. Use excitation voltage within the recommended 512 V range; do not exceed the maximum 18 V. Ensure appropriate signal conditioning or amplifier input for the output sensitivity of 1.02.0 ±0.2 mV/V. Verify environmental and mechanical installation to remain within the specified temperature compensation and safe overload ranges. This load cell provides a straightforward, precision replacement option for singlepoint weighing applications requiring metal construction, C3 precision, and stable analog output characteristics.
