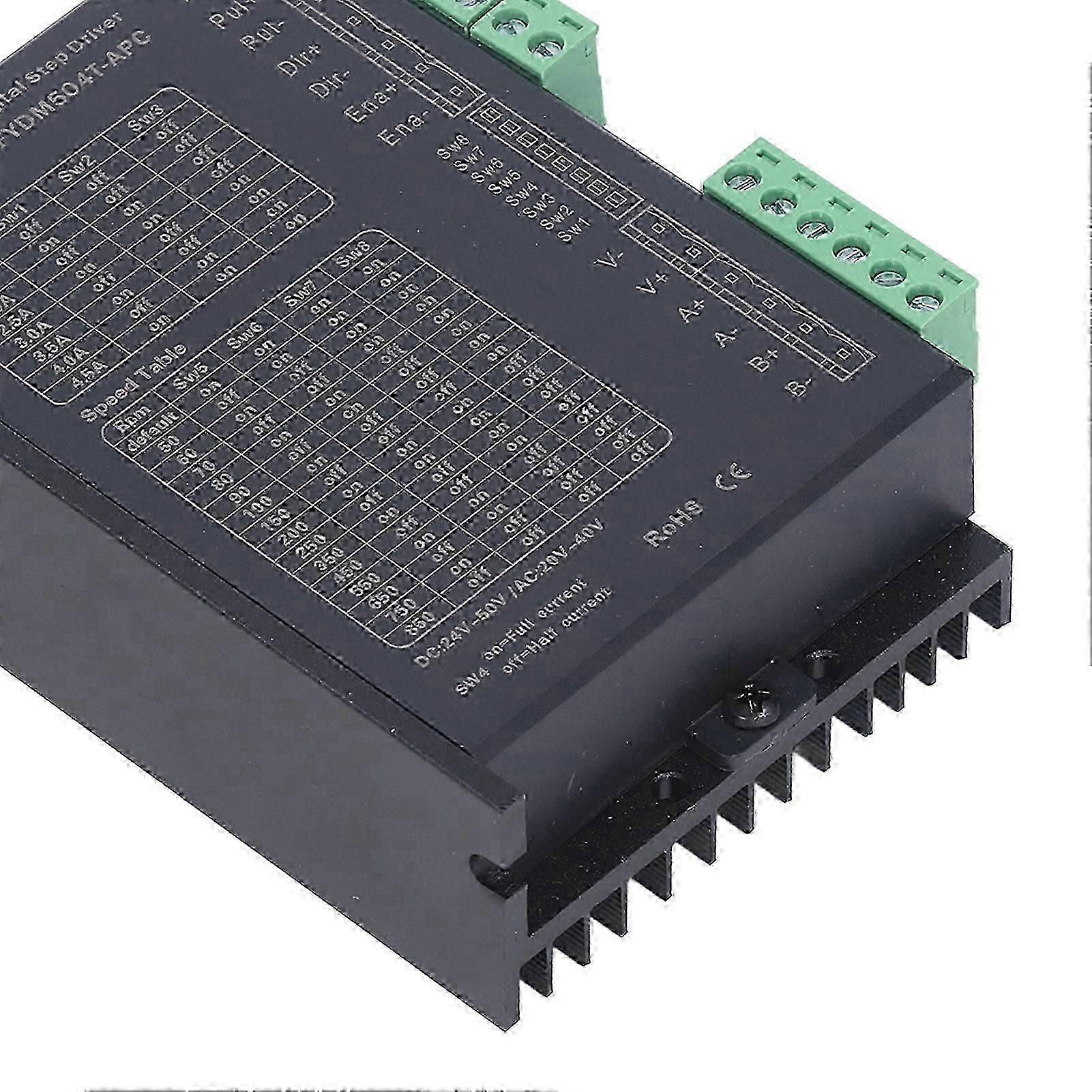

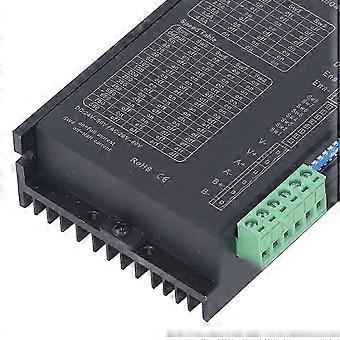

CNC Stepper Motor Driver Adjustable Digital stepper Controller for 56mm 60mm 86mm Series YF

Feature: 1. APPLICABLE MOTOR: Using the latest 32 bit DSP control technology, the motor achieves the best output performance, suitable for 56, 60, 86mm series stepper motor. 2. STABLE OPERATION: Automatically calculate the resonance point, effectively suppress the noise and vibration of the motor running at low speed, and run stably. 3. ADJUSTABLE CURRENT: Precise current control makes the motor temperature rise low, 8 speed adjustable drive current, switch control mode to ensure good safety. 4. GOOD PROTECTION: With undervoltage, overvoltage, overcurrent, short circuit, open circuit, wrong phase fault status indication and automatic protection function. 5. WIDE SPEED RANGE: Choose a suitable stepper motor, speed ​​up to 1500rpm, the optical isolation differential signal input, pulse response frequency up to 200Kpps. Specification: Item Type: Stepper Motor Driver Material: ABS, Aluminum Alloy Voltage: DC24-50V Speed Response Frequency: 200KHz Power: 0.6KW Drive Current: 1.0-4.5A per phase, 8 gears adjustable Control Mode: Switch Control Subdivision: The highest resolution is 25600 steps per revolution, 16 gears adjustableMaximum Pulse Frequency: 200Kpps. Package List: 1 x Stepper Motor Driver Note: 1. The input voltage should not exceed DC50V, AC40V. The green indicator PWR is on when the drive is powered on.2. The drive fault indicator light is on, please check the motor wiring and control signal line. In case of motor wiring and other short circuit faults, it needs to be powered on again after removal.3. SW4 to set the lock current function: ON=Full Current (full current lock), OFF=Half Current (half current lock).SW4 is set to OFF when leaving the factory, which reduces the heat generation of the motor and driver and improves reliability. The current will automatically decrease by 50% 100ms after the pulse train stops.4. The driver has the function of single and double pulse selection, which can be set through the communication port. The factory default is pulse+ direction.
