T8 Electronic Ballast 220V YZ236EAA for 36W Fluorescent Tube Light Box, Instant Start Energy Saving Design

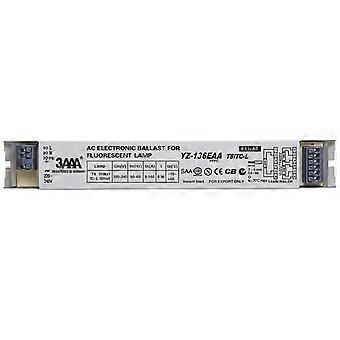

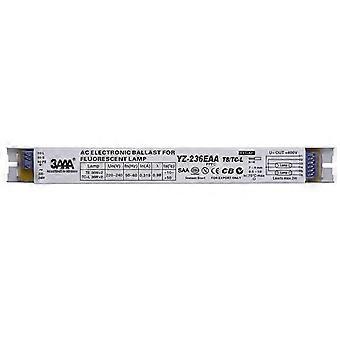

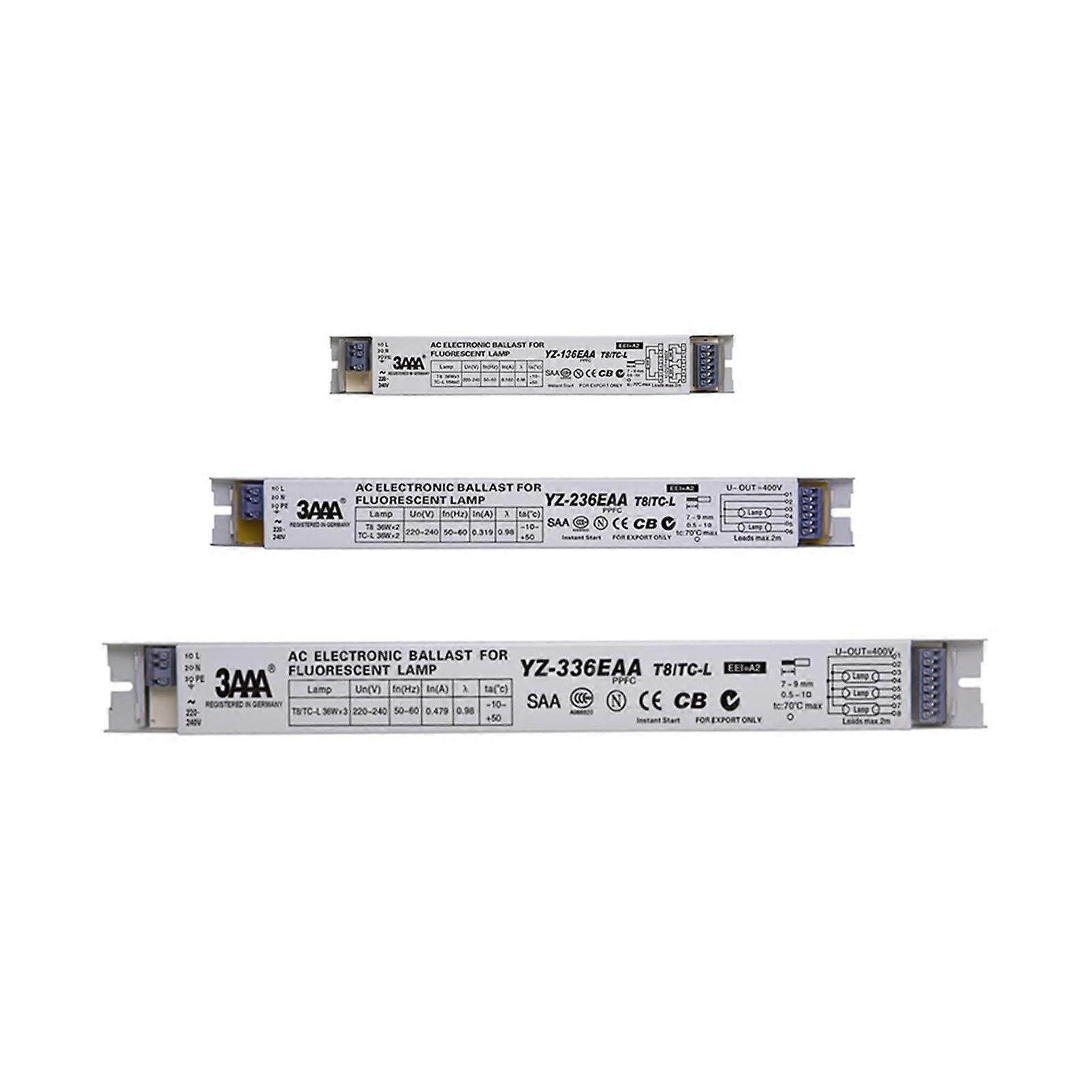

Electronic Ballast YZ136EAA and YZ236EAA Overview Reliable electronic ballasts designed for T8 36W lamps. Two model options cover singlelamp and doublelamp fixtures with power factor, stable operation across fluctuating mains, and long service life. Key benefits Stable lamp operation: nonwarmstart design enables immediate starting without preheating, reducing start delay and improving fixture responsiveness. electrical efficiency: EEI A2 energy rating and a power factor of 0.98 reduce wasted energy and improve overall system performance. Wide input tolerance: operates across a wide voltage range to handle common mains fluctuation without affecting lamp output. Robust EMC and interference immunity: designed with strong emission and immunity margins in relevant frequency bands to minimize interference with surrounding equipment. Long service life: rated for 30,000 hours to lower replacement frequency and maintenance needs. Models and compatibility YZ136EAA Applicable lamp: T8 36W x 1 Power supply: AC 220240 V Operating voltage range: 198254 V Input frequency: 50/60 Hz Operating frequency (ballast): greater than 2 kHz Energy label: EEI = A2 Power factor: 0.98 Startup mode: Nonwarmstart Rated life: 30,000 hours Mounting hole distance: 200 mm Dimensions: 210 mm length, 30 mm width, 32 mm height Maximum shell temperature: 70 C Ambient operating temperature: minus 15 to 50 C YZ236EAA Applicable lamp: T8 36W x 2 Power supply: AC 220240 V Operating voltage range: 198254 V Input frequency: 50/60 Hz Operating frequency (ballast): greater than 2 kHz Energy label: EEI = A2 Power factor: 0.98 Startup mode: Nonwarmstart Rated life: 30,000 hours Mounting hole distance: 280 mm Dimensions: 290 mm length, 30 mm width, 30 mm height Maximum shell temperature: 70 C Ambient operating temperature: minus 15 to 50 C Performance and reliability Designed to maintain safe operation under mains fluctuations while protecting connected lamps. conversion efficiency improves luminous output per watt and reduces losses in the ballast itself. Strong electromagnetic compatibility performance reduces the risk of causing or experiencing interference in typical installation environments. Installation and use Typical mounting hole distances and compact dimensions allow installation in standard fluorescent fixtures or retrofit housings. Suitable for use in fixtures where immediate lamp start is required. Follow standard wiring and mounting practices for safe and reliable installation. Ensure ambient temperature and maximum shell temperature limits are respected. Applications Office and commercial lighting Retail stores and supermarkets Industrial workshops and warehouses Educational facilities and corridors What to expect Consistent lamp performance across common mains variations Low input current distortion and power factor Extended operational life that reduces maintenance cycles Notes Choose the model that matches the number of lamps in your fixture: YZ136EAA for a single 36W T8 lamp, YZ236EAA for two 36W T8 lamps.
