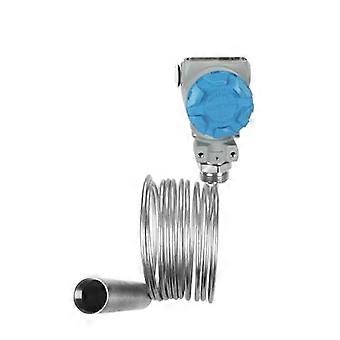

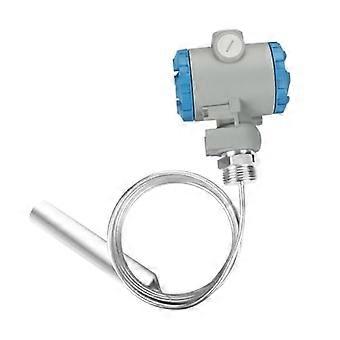

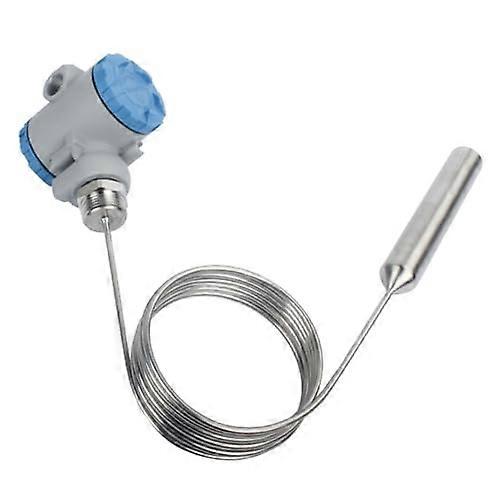

Water Level Sensor QDY60B 3m Range 010V IP68 Submersible Pressure Transmitter for Oil Sewage Tank

Model QDY60B liquid level and pressure sensor for static liquids and temperature environments Key benefits Reliable submersible performance with IP68 protection for continuous immersion and long service life. Flexible output and integration options: choose RS485 digital output or standard analog outputs 420mA, 15V, or 010V for compatibility with PLCs, data loggers, and control systems. Wide measurement capability: suitable for level measurements up to 020 m and pressure applications with a maximum measuring range of 400 Bar and above. Robust power and installation options: operates from DC24V or any supply between 10 and 36 V, eliminating the need for a battery. Designed for demanding conditions: specified for temperature applications and corrosive or dirty fluids such as sewage and industrial effluent. Key specifications Model number: QDY60B Size: 3 m (cable length) Measurement range: 020 m Max measuring range: 400 Bar and above Output signals: RS485, 420mA, 15V, 010V Power supply: DC24V, 1036V Battery included: No Max working temperature: 300 Protection rating: IP68 Typical applications: temperature monitoring, static liquid level measurement, liquid tanks, sewage water, wells, lakes What makes this product stand out Multiple output choices and wide supply voltage allow straightforward integration into existing control and monitoring systems without additional converters. pressure rating and IP68 protection enable use in deep wells and submerged installations under harsh conditions. Durable design for use with liquids that contain solids or biologically active material, reducing downtime and maintenance. Practical use scenarios Industrial tank level monitoring: Install the sensor in an industrial storage tank to provide continuous level feedback to a PLC using 420mA or 010V output for automated fill and discharge control. Sewage and wastewater stations: Submerge the sensor in a sewage sump to monitor liquid level and trigger pumps or alarms via RS485 communication, tolerating dirty water and submerged conditions. Well and lake monitoring: Deploy the sensor with its 3 m cable for groundwater or surface water level measurement, using the 020 m range and a robust pressure rating for deeper installations. Compatibility and installation notes Select the appropriate output signal to match your controller or data acquisition system. RS485 supports digital integration, while analog outputs allow simple wiring to standard instrumentation. Confirm the required power supply falls within the 1036 V range or use DC24V as a common option. IP68 protection requires correct sealing during installation; verify cable connections and mounting to maintain submersible integrity. This QDY60B sensor provides a practical, adaptable solution for liquid level and pressure measurement in industrial, municipal, and environmental monitoring applications where reliable submerged operation and flexible signal options are required.
