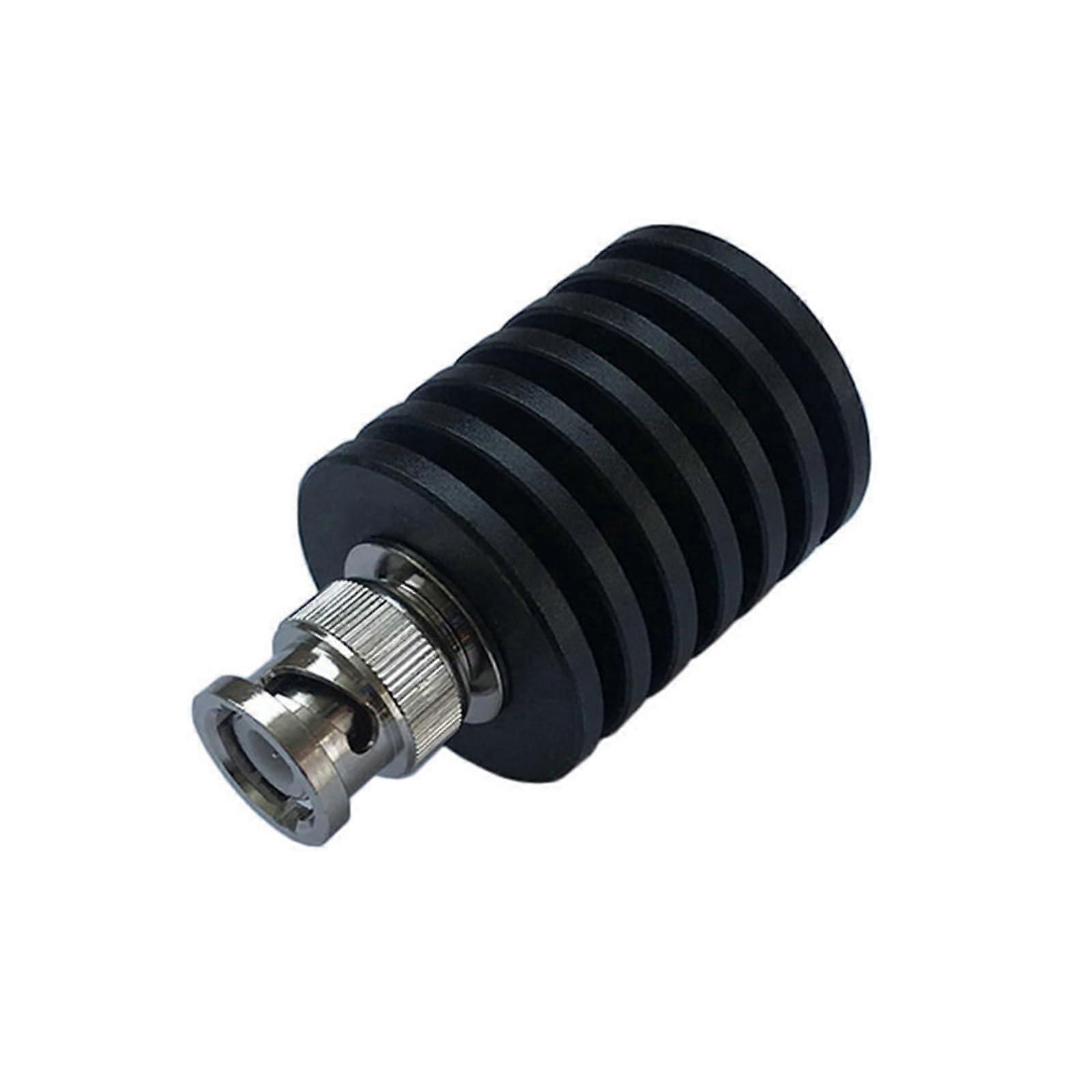

10W BNC Male RF Coaxial Dummy Load 50 Ohm Termination DC3GHz Frequency Test Plug

Model: BNC Coaxial Load Color: 10w Bnc 3g Description A precision 50 ohm BNC coaxial load designed to absorb RF energy and an antenna or open circuit, minimizing reflections and stabilizing measurements. This load provides reliable impedance matching and controlled dissipation of transmitter power for lab, field, and production use. Key benefits Prevents signal reflection: Absorbs RF power so transmitters see a proper matched load instead of a reflective antenna or open circuit. Stable impedance: Nominal 50 ohm matching reduces VSWR and helps maintain measurement accuracy. Wide operating range: Supports DC to 3 GHz or DC to 6 GHz variants for flexibility across common RF bands. Temperature resilience: Rated for operation from minus 55 degrees C to plus 125 degrees C for consistent performance in varied environments. Easy connection: BNC male interface allows fast hookup to common test equipment and instruments. Technical highlights Model: BNC Coaxial Load Power rating: 10 W (other power ratings available such as 1 W, 5 W, 100 W) Impedance: 50 ohm VSWR: less than or equal to 1.20 / 1.25 depending on frequency and model Frequency range: DC to 3 GHz or DC to 6 GHz (select model) Temperature rating: 55 C to +125 C Interface: BNC male connector Common connector options: SMA, BNC, Ntype available for compatibility with different systems Practical guidance Match the load power rating to your transmitter output to avoid overheating. Use the BNC male connector to attach directly to instruments, coax cables, or adapters. For higher frequency or higher power needs, select the appropriate frequency range or larger power rating variant. Typical applications RF transmitter testing and alignment: an antenna during bench tuning to verify output and monitor signals without radiating RF. Field diagnostics and maintenance: Provide a safe matched load for site troubleshooting, transmitter checks, and installation verification. Lab measurement and calibration: Use as a reference termination when measuring VSWR, power, or spectrum characteristics on 50 ohm systems. Why choose this load This BNC coaxial load delivers predictable 50 ohm termination with a clear power rating and defined frequency performance. Its compact BNC interface makes it convenient for immediate connection to common test equipment. The wide temperature range and low VSWR support repeatable results in both bench and field environments. Ordering notes Select the frequency range and power rating that match your application. Connector options such as SMA and Ntype are available if required for system compatibility.
