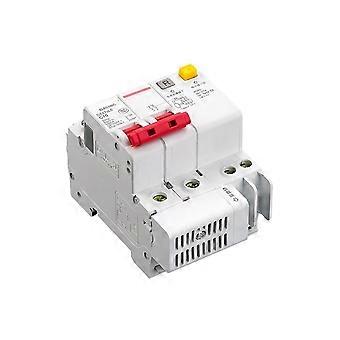

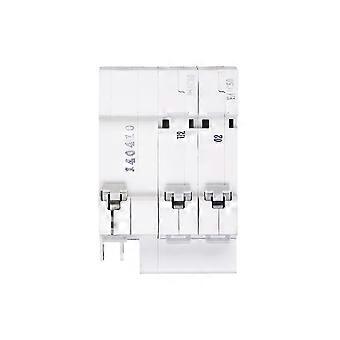

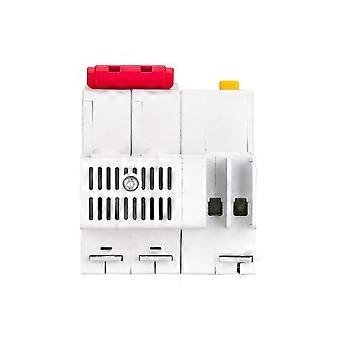

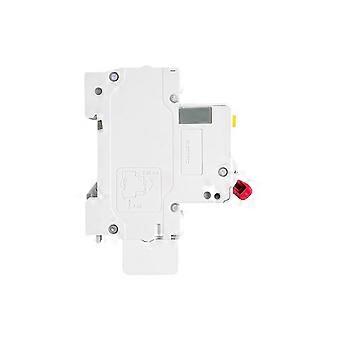

DZ47sLE 25A 2P RCBO Residual Current Circuit Breaker with Leakage Protection 230V 6kA

DZ47sLE 2P 230 V AC Residual Current Miniature Circuit Breaker — 25 A version Product overview This DZ47sLE twopole miniature circuit breaker in the 25 A configuration combines residual current protection with conventional overload and shortcircuit tripping. It isolates phase and neutral together, providing reliable protection for singlephase 230 V AC circuits in residential, commercial, and light industrial applications. Key benefits Combined protection: Detects leakage and trips for overload and shortcircuit conditions, reducing nuisance tripping while protecting people and equipment. Reliable operation: Long service life with electrical endurance up to 10,000 operations and mechanical endurance designed for heavy use. Robust performance: 6 kA segmenting capability with a rated breaking capacity and industrystandard C curve tripping suitable for generalpurpose circuits. Wide temperature range: Operates across harsh ambient conditions from 35 to +70 C and stores safely from 40 to +70 C. Flexible installation: and bottom connections and double inandout incoming mode allow neat, spacesaving distribution box wiring. Clear installation specs: Defined tightening torque values simplify reliable conductor termination. Technical highlights Model: DZ47sLE Configuration: 2P (twopole), 25 A version Rated voltage: 230 V AC Rated current options: 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 63 A Tripping curve: C Breaking capacity: 4500 A (series rated 6 kA segmenting capability) Mechanical life: up to 20,000 operations Electrical life: 10,000 operations Operating temperature: 35 to +70 C Storage temperature: 40 to +70 C Connection: From and bottom Incoming line mode: Double in and out Tightening torque: 2.0 Nm for 6 to 32 A; 2.5 Nm for 40 to 63 A Pollution degree: 2 Protection degree: IP20 for direct installation; IP40 when installed inside a distribution box Short duration pressure resistance: 2 kV at 50/60 Hz for 1 minute Typical applications Residential distribution boards: Branch circuit protection for lighting and socket outlets in singlephase homes and apartments. Small commercial and office spaces: Protection for lighting circuits, small air conditioning units, and generalpurpose outlets. Light industrial control panels: Branch circuit protection for motors, pumps, and equipment where combined leakage and overload protection is required. Installation notes Use proper tightening torque per current rating to ensure secure terminations. The twopole design isolates both phase and neutral simultaneously for safer maintenance. For installation inside distribution enclosures, the device meets IP40 protection; direct mounting requires attention to IP20 limitations. This DZ47sLE 2P 25 A residual current miniature circuit breaker offers a compact, durable solution for dependable leakage and fault protection in a wide range of 230 V AC singlephase applications.
