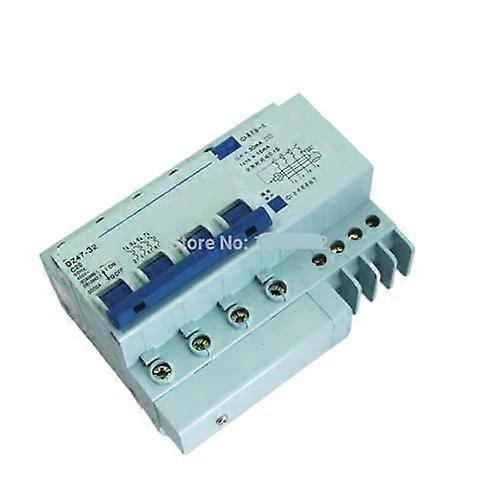

DZ47LE 4P 20A Residual Current Circuit Breaker with Overcurrent and Leakage Protection for Home and Commercial Use

Miniature Circuit Breakers provide reliable overcurrent protection for electrical circuits while keeping installations compact and serviceable. They automatically interrupt fault currents caused by overloads or short circuits, protecting wiring and connected equipment and simplifying maintenance and troubleshooting. Key benefits Effective circuit protection: Responds quickly to overloads and short circuits to isolate faults and reduce the risk of damage to wiring and devices. Space efficient: Modular design fits standard distribution boards and DIN rail enclosures to maximize usable panel space. Easy to install and : Snapon mounting and accessible terminal screws reduce installation time and make field replacement straightforward. Flexible selection: Available in multiple pole configurations and trip characteristics to match circuit demands and equipment inrush currents. Durable construction: Robust thermoplastic housing and corrosionresistant terminals deliver long mechanical life and stable operation under normal electrical conditions. Main features Function: Thermalmagnetic switching that combines overload sensing with instantaneous trip for short circuits, providing dependable disconnection for protected circuits. Compatibility: Designed for use in residential, commercial, and light industrial distribution panels. Fits standard DIN rail mounting and common modular consumer units. Size and form factor: Compact modular footprint suitable for multicircuit panels and retrofits where space is limited. Materials: quality insulating housing and plated conductive terminals for consistent electrical contact and mechanical durability. Performance: Stable trip characteristics and repeatable operation across the rated current range. Available in a variety of current ratings and trip curves to match specific load and inrush profiles. Installation and operation Simple DIN rail clipping and frontaccess terminals make wiring and meter connections straightforward. Clear toggle position provides immediate visual indication of ON or OFF and simplifies fault identification. Common maintenance tasks such as visual inspection and swapout replacement can be completed quickly without panel modification. Typical use scenarios 1) Home distribution board: Protects individual branch circuits for lighting, outlets, and small appliances. Compact modules allow full use of consumer unit space and make circuit labeling and future changes simple. 2) Small commercial premises: Provides dedicated protection for receptacle circuits, lighting circuits, and service panels in offices, shops, and restaurants. Selectable trip characteristics help accommodate loads with moderate inrush currents. 3) Control panels and equipment enclosures: Protects control circuits, motor starters, and auxiliary equipment in machinery or building services. Modular mounting and consistent tripping behavior simplify integration and maintenance. What to check before Confirm required current rating and trip characteristic to match the load type and inrush behavior. Verify pole configuration needed for singlephase or multiphase circuits. Ensure physical compatibility with the existing DIN rail or consumer unit and available module space. Review terminal type and wire size compatibility for your wiring practices. This product is engineered to provide dependable overcurrent protection while minimizing panel space and simplifying installation and maintenance. Select the correct rating and trip characteristic for your application to achieve consistent protection and reliable circuit management.
