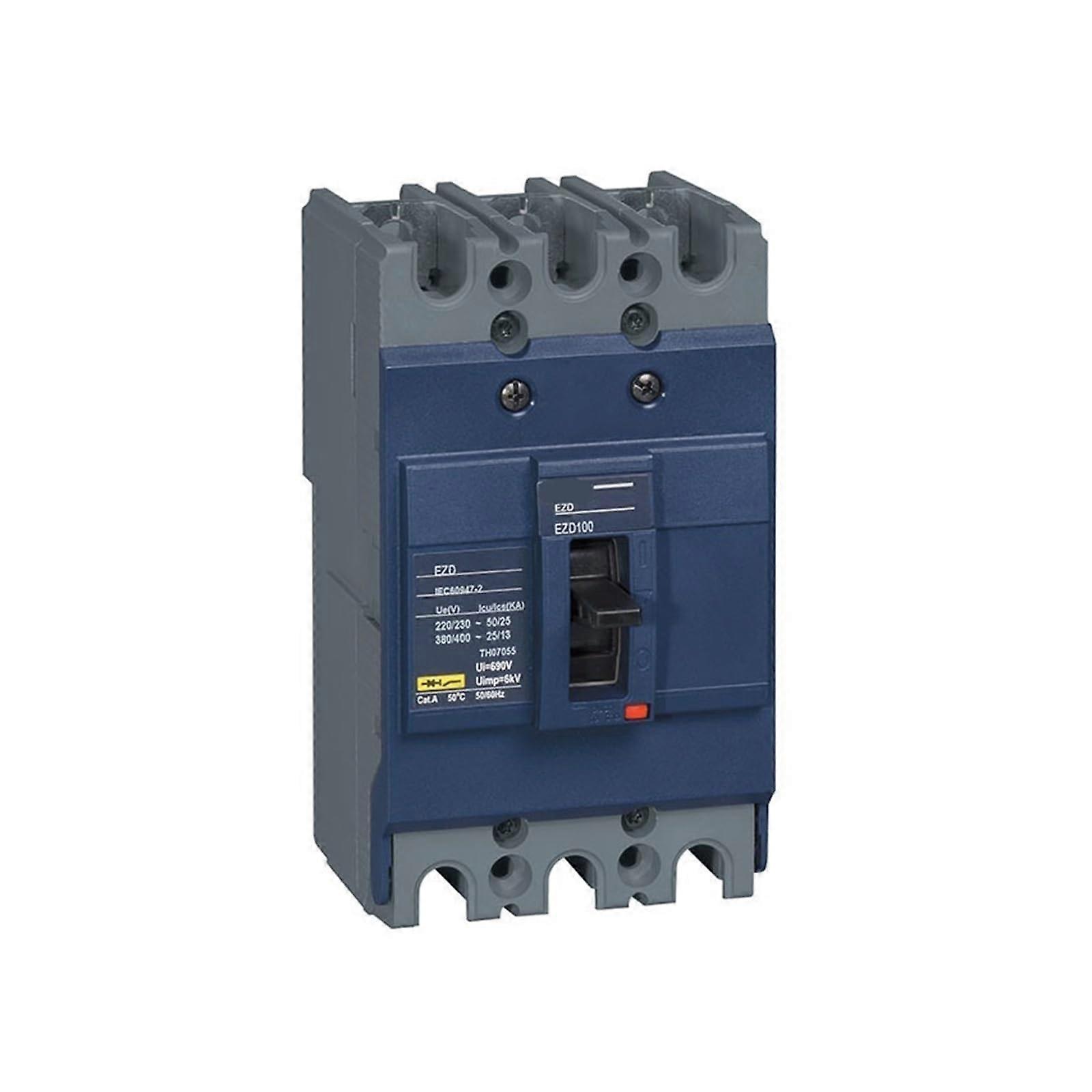

EZD100M3025N Molded Case Circuit Breaker 25A 3 Pole Thermal Magnetic MCCB with Reliable Overload Protection

Circuit Breakers EZD100M TM25D 3P/3d number EZD100M3025N Product overview A three pole thermal magnetic circuit breaker designed for reliable protection of three phase electrical circuits. Combines adjustable overload and instantaneous short circuit response in a compact fixedmount device suitable for distribution and control panels. Key benefits Clear circuit protection: Thermal magnetic release provides dependable overload protection and fast response to short circuits, reducing risk of equipment damage and downtime. breaking performance: 35kA breaking capacity manages fault currents commonly found in industrial and commercial installations. Panelfriendly installation: Fixed mounting with front panel wiring simplifies installation and maintenance in standard distribution boards. Spaceefficient and robust: Compact footprint and durable insulating housing save panel space while maintaining mechanical strength for longterm service. Accurate sizing flexibility: 100A frame with a 25A rated current provides coordinated protection when used in multilevel protection schemes. Core specifications Model: EZD100M TM25D 3P/3d number: EZD100M3025N Number of poles: 3P Frame current: 100A Rated current: 25A Breaking capacity: 35kA Release type: thermal magnetic Installation method: Fixed Wiring method: Front panel wiring Why you need this circuit breaker Protects equipment and wiring from overloads and short circuits with a combined thermal and magnetic release, reducing service calls and replacement costs. Handles fault currents up to 35kA, making it suitable for tougher electrical environments. Fixed mounting and front panel wiring reduce labor time during installation and allow straightforward access for inspections or replacements. Performance and compatibility Designed for three phase systems that require three pole protection and coordination with upstream and downstream devices. The 100A frame allows selection of lower rated currents for selective coordination while maintaining consistent trip characteristics. Compatible with standard distribution panels that accept fixedmounted, frontwired circuit breakers for compact and organized wiring. Material and build Built with a durable insulating housing and robust internal contacts to withstand repeated switching and thermal cycling. Mechanical components and terminals are engineered for secure front panel wiring and longterm stability under typical panel vibration and temperature ranges. Typical applications 1. Industrial motor control: Protect motors and feeder lines in machine rooms or production cells that require combined overload and short circuit protection. 2. Commercial distribution panels: Serve as branch protection in multifloor office buildings, retail spaces, and light industrial facilities. 3. Backup power and generator distribution: Protect circuits in generator output panels and transfer switch arrangements where breaking capacity is important. Installation and maintenance notes Intended for fixed installation in compatible distribution boards. Ensure panel layout accommodates front panel wiring and access for operation and inspection. Coordinate rated current selection with upstream protection devices and conductor sizing to achieve selective tripping and proper protection levels. Periodic inspection and torque checks on terminals recommended as part of routine electrical maintenance. Ordering information Specify model EZD100M TM25D 3P/3d and number EZD100M3025N when selecting this breaker for procurement or replacement to ensure exact match of frame, rated current, and release type.
