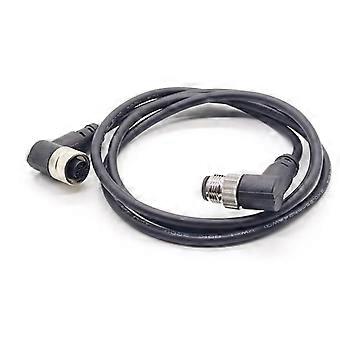

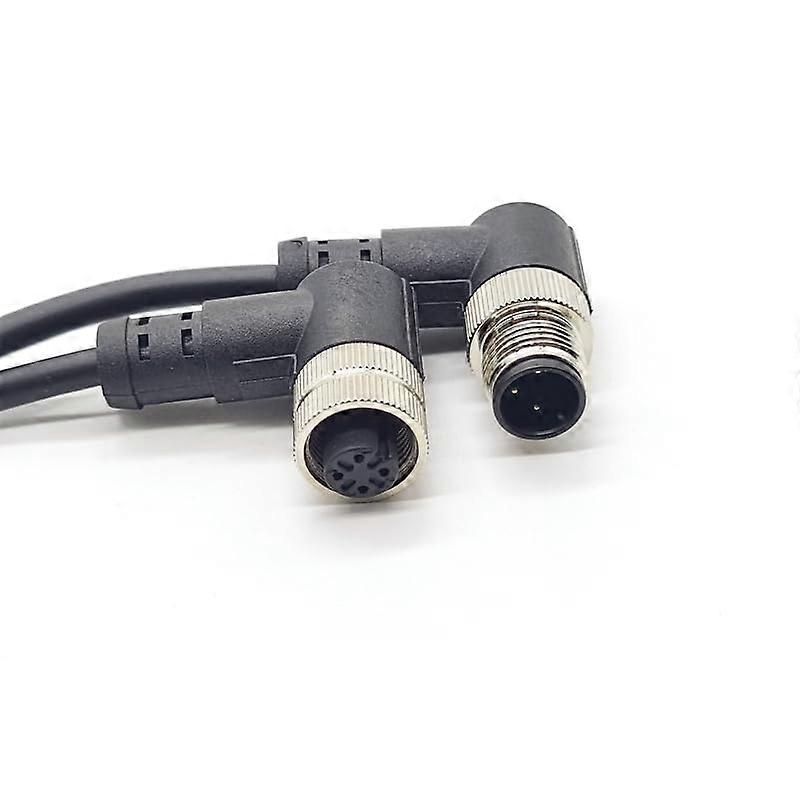

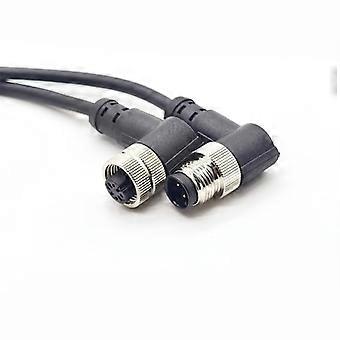

M12 3 Pin Sensor Extension Cable 1m Male to Female Right Angle Waterproof IP67 GoldPlated Contacts

M12 3Pin Male to Female Right Angle Connector Cable, 1 m Key benefits Reliable signal and data transmission for sensors and actuators thanks to a robust M12 3Pin coding interface and 12 mm threaded joint. Weatherproof and dustproof connection with IP67 protection for use in harsh or outdoor environments. Secure, vibrationresistant connection using a threaded locking mechanism to reduce accidental disconnects and improve uptime. Easy installation and durable construction: AWG22 conductors, PVC jacket, brass contacts with gold plating, and screw crimping termination for strong electrical contact. Features and performance Connector type: M12 3Pin male to female, one end features a right angle connector for flexible routing in tight spaces. Cable length: 1 m. Conductor size: AWG22 for reliable signal and lowvoltage power transmission. Contact material: Brass with gold plated finish to improve conductivity and resist corrosion. Jacket material: PVC, insulation and flame retardant. Locking method: Threaded type with anti vibration design for stable mechanical retention. Termination: Screw crimping for secure, fieldserviceable connections. Electrical ratings: Rated voltage 250 V, rated current 4 A. Environmental and mechanical: IP67 rated for dust tight and temporary immersion protection. Operating temperature range: 25 C to 85 C. Why choose this cable Ensures stable, repeatable connections for industrial sensors, field bus components, and actuator interfaces. Right angle connector option reduces strain at the connection point and helps with cable routing in compact installations. Gold plated contacts and screw crimping deliver consistent electrical performance and long service life in demanding conditions. Typical applications Industrial automation: connect proximity sensors, encoders, and actuator modules to control systems and field bus networks. Electric bicycles and light electric vehicles: link motor controllers, throttle sensors, or brake sensors where a compact, sealed connector is needed. Aerospace and avionics signal routing: reliable signal connector for onboard electronic modules and instrumentation in vibrationprone installations. Technical summary Interface: M12 coding, 3Pin Configuration: Male to female, right angle connector present Length: 1 m Conductor: AWG22 Jacket: PVC, flame retardant Contacts: Brass with gold plated Termination: Screw crimping Locking: Threaded type, anti vibration IP rating: IP67 Rated voltage: 250 V Rated current: 4 A Temperature range: 25 C to 85 C This M12 3Pin connector cable is designed for dependable signal and lowvoltage power connections where a sealed, vibrationresistant interface is required.
