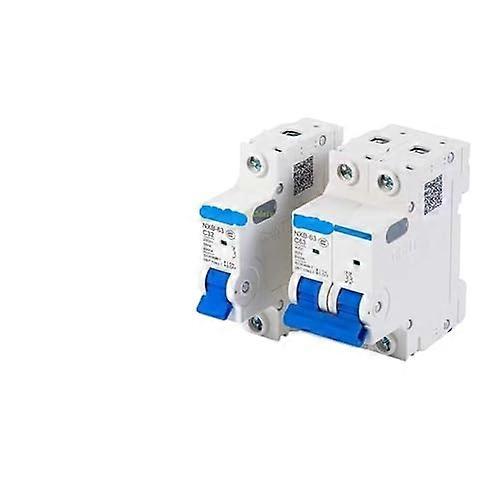

DZ47 NXB63 Curve D Type Miniature Circuit Breaker 1P‑4P 32A 40A Overload Short Circuit Protection

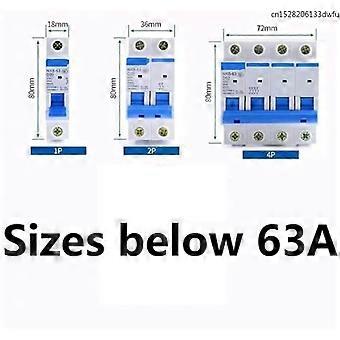

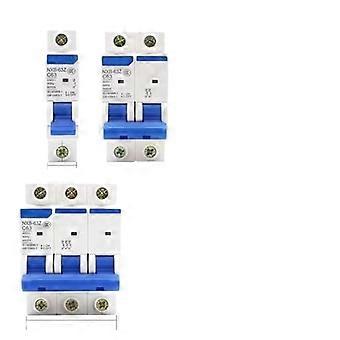

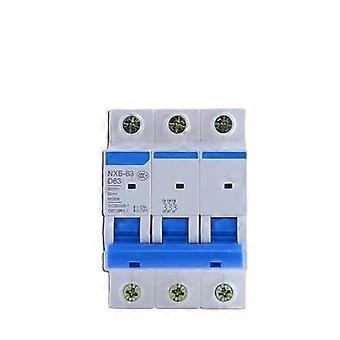

Compact, reliable miniature circuit breaker designed for power protection in residential and light commercial electrical installations. Key benefits Protects circuits from overload and short circuit conditions to reduce risk of wiring damage and equipment downtime. Curve D trip characteristic handles inrush currents from motors, transformers, and other inductive loads without nuisance tripping. Flexible configuration options let you match the breaker to your circuit layout and phase requirements. Features and specifications Models: NXB63 and DZ47 series, Curve D type. Pole options: available in 1P, 2P, 3P, and 4P configurations; this listing size is 1P. Rated current options: 32A and 40A. Function: MCB air switch for circuit protection and manual switching. Color: 6A. Designed for straightforward installation and replacement in standard electrical panels and distribution assemblies. Performance and compatibility Curve D characteristic provides delayed tripping for short, startup currents while still protecting against sustained overloads and direct short circuits. Multiple pole options support single phase and multi phase circuits depending on system needs. Compact form factor and clear labeling enable easy identification and wiring in confined panel spaces. Typical applications Motor and compressor circuits where inrush currents are common. Lighting and distribution circuits that require reliable overload and short circuit protection. Industrial control panels and machinery power feeds that need coordinated protection for inductive loads. Why choose this breaker Practical configuration choices and Curve D tripping make it suitable for applications with heavy inductive loads. Simple, conventional design supports easy installation and replacement in existing electrical systems. Clear, focused functionality for dependable circuit protection and manual switching. Installation notes Select the appropriate pole count and rated current for your circuit. Ensure compatibility with the panel layout and wiring practices before installation. Have installation and any modifications performed by a qualified electrician to match local electrical codes and system requirements.
