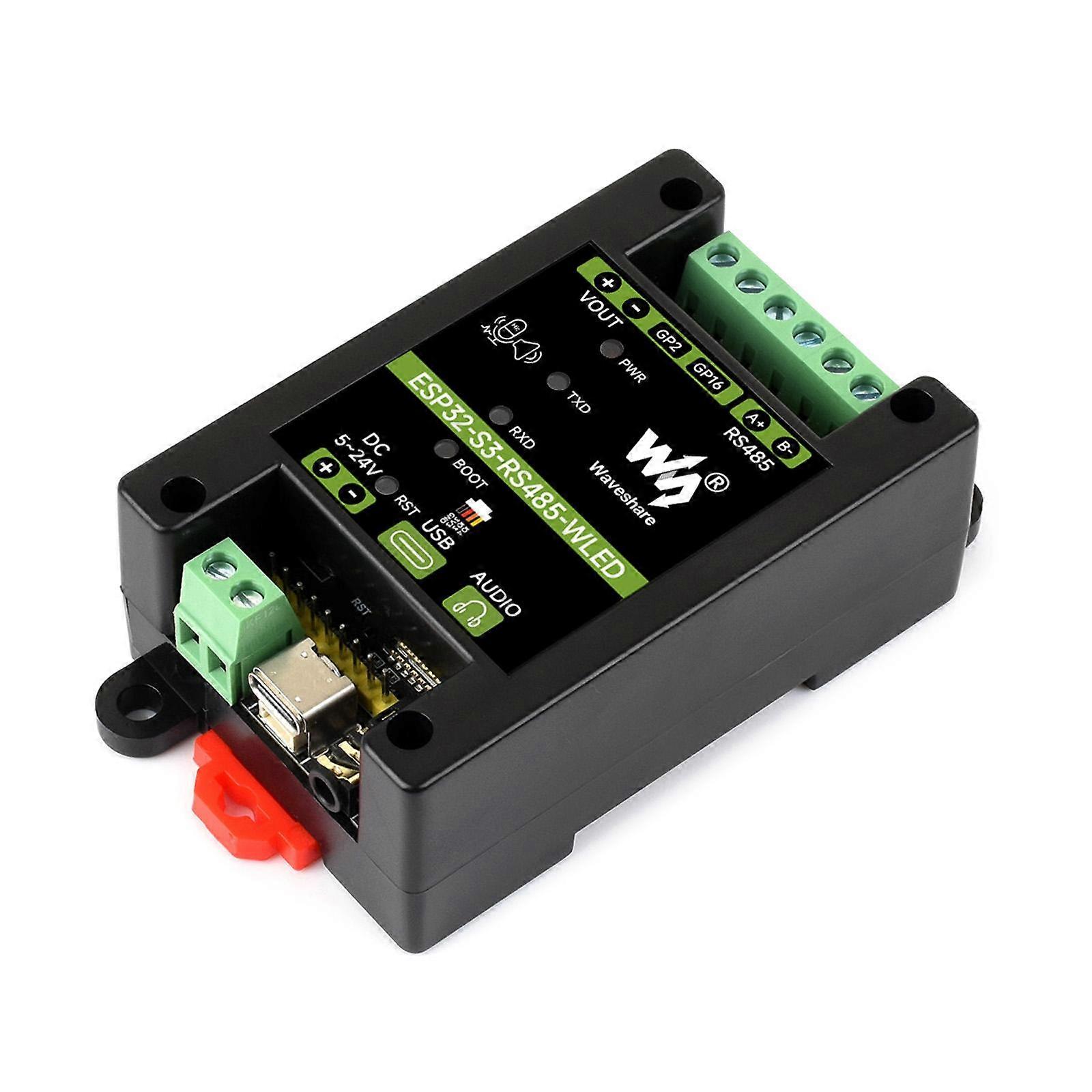

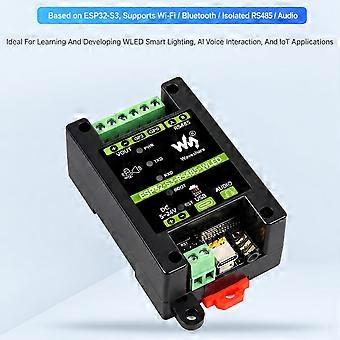

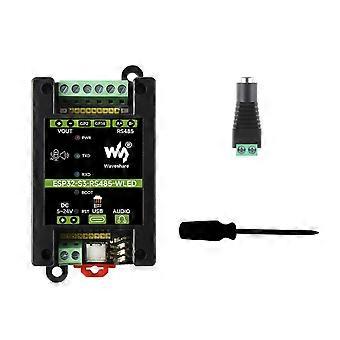

WAVESHARE ESP32-S3 RS485 Development Board, LX7 240MHz Dual-Core Processor, WLED Strip Control 35580

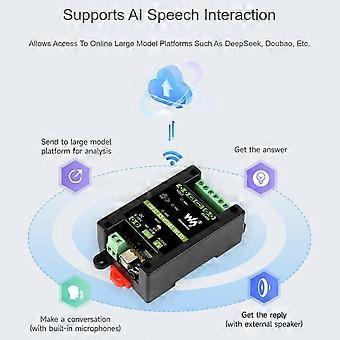

WAVESHARE ESP32-S3 RS485 Development Board, LX7 240MHz Dual-Core Processor, WLED Strip Control 1. Microcontroller: ESP32-S3-WROOM-1-N16R8 2. Antenna Interface: On-board PCB antenna 3. Wireless Communication: 2.4 GHz Wi-Fi (802.11 bgn), Bluetooth 5 (BLE) 4. Input Voltage: Supply Range: 5 V – 24 V 5. WLED Light Output: - Maximum Output Current: 8 A (adequate heat dissipation required) - Output Channels: 2 LED output channels (GPIO2, GPIO16) - Supported LED Strips: WS2812B WS2811 SK6812 TM1814 SM16704 APA102 SK9822 monochrome LED strips, etc. - Control Methods: WLED open-source firmware (web-based control); supports color, brightness, dynamic effects, zone control, scene presets, and other functions 6. USB Interface: - Interface Type: USB Type-C - Supply Voltage: 5V - Functions: USB communication, firmware download, etc. 7. Isolated RS485 Communication Interface: - Interface Type: Terminal blocks - Direction Control: Automatic control via master hardware flow settings - Interface Protection: Provides TVS diode protection, surge protection, and ESD protection - Matching Resistor: Default NC; 120R matching resistor reserved; can be enabled via jumper cap 8. Indicator Lights: - PWR: Power indicator; lights up red when connected to USB and voltage is detected - RS485: RS485 indicator: Lights up green when data is transmitted from the RS485 interface via TXD; lights up blue when data is received from the RS485 interface via RXD 9. Enclosure: DIN-rail mounting enclosure 10. Dimensions: Approx. 8.19 x 5.4 x 3.2 cm Features: 1. Based on the ESP32-S3-WROOM-1-N16R8 module, featuring an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz 2. Integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, facilitating the development of wireless control, device networking, and IoT applications 3. Equipped with 16 MB of Flash and 8 MB of PSRAM, providing ample storage and runtime capacity for
