Spectrum Measurement Instrument with Integrated Generator, Output Adjustment, Marker Table, and Rechargeable Battery Power for Frequency Analysis

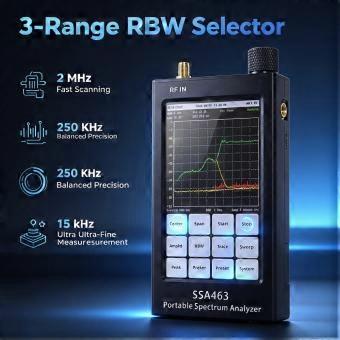

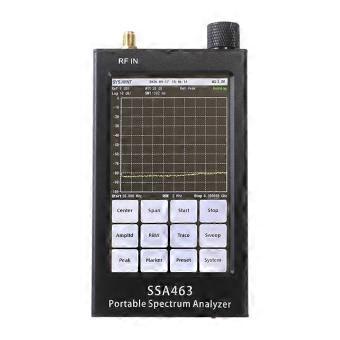

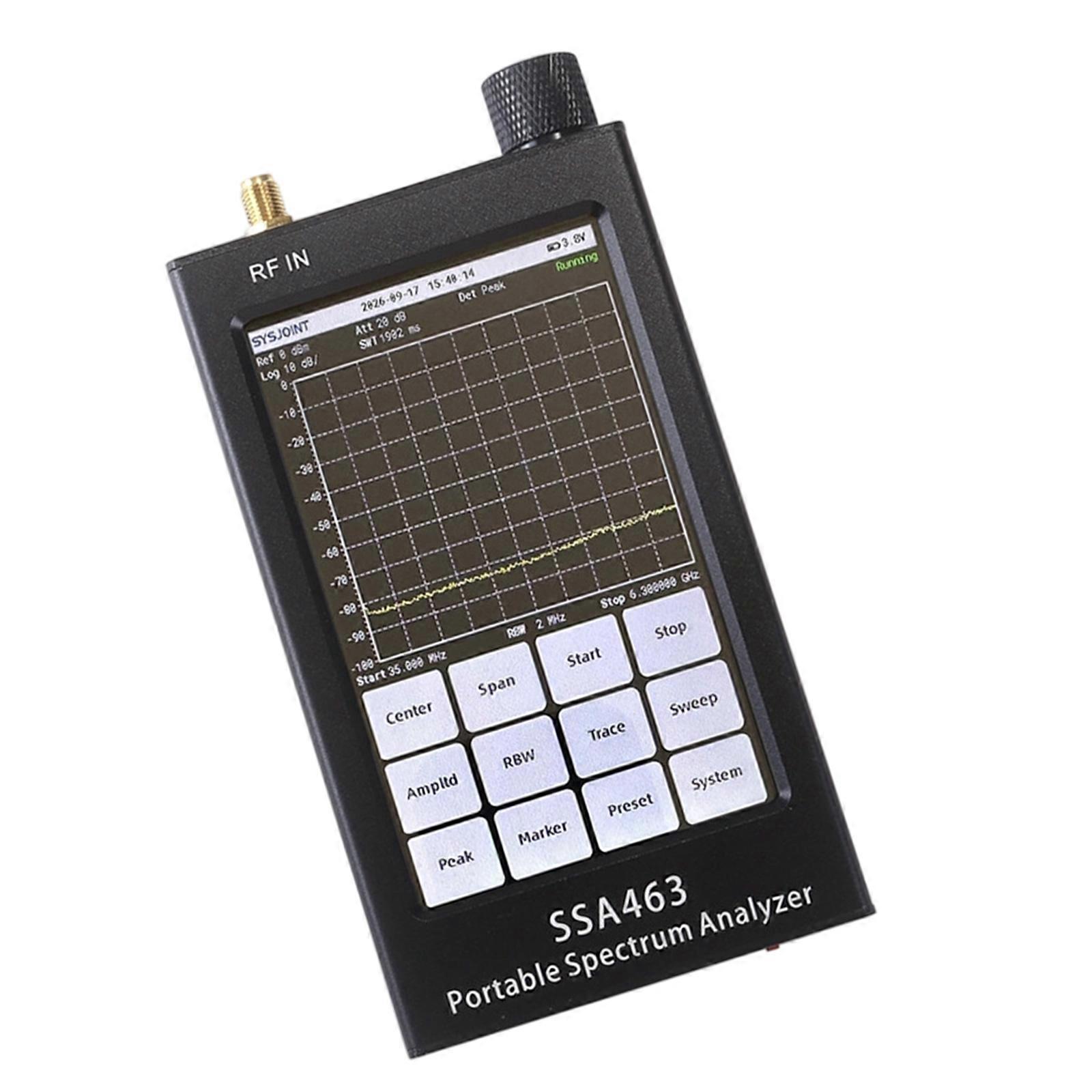

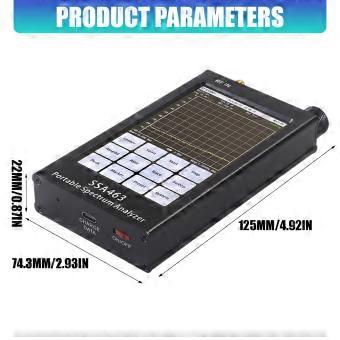

Features: Broad Frequency Coverage: The SSA463 sweeps from 35 MHz to 6.3 GHz and provides 2 MHz, 250 kHz, and 15 kHz RBW choices, letting the displayed spectrum detail suit the measurement task. Structured Spectrum Analysis: The swept-tuned superheterodyne architecture covers the defined frequency span, while marker and waterfall views provide two ways to examine changing activity. Integrated Generator Output: The built-in generator provides fine output control, combining spectrum measurement and controlled output in a portable instrument. Portable On-Device Controls: Touchscreen, knob, and function buttons place primary actions on the instrument, while the 4000 mAh power source supports at least 5 hours of portable measurement. Package Contents: Includes 1 SSA463 spectrum measurement instrument set, clearly identifying the main device and package quantity. Specifications: Component: Metal Size: Approx. 12.50x7.43x2.20cm / 4.92x2.93x0.87inch Frequency Ranges: 35MHz～6.3GHz Dynamic Ranges: +10dBm ~ -110dBm RBW 3 Selectable Modes: 2MHz, 250kHz, 15kHz Built-in Signals Generator with 0.5dB Power Step Power: 10W (5V/2A) Screen: 4.3in Battery: 4000mAh rechargeable cell; runtime ≥5 hours Quantity: 1 Set Package Includes: 1 set Electronic Measuring Instrument note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you donot mind before you order. 2.Due to the differences between different monitors, the picture may not reflect the actual color of the item.
