Dual NVMe PCIe Adapter. PCIe 4.0 x16 to dual NVMe and 1 additional PCIe x16 adapter (x8 signal) for M.2 NVMe SSDs

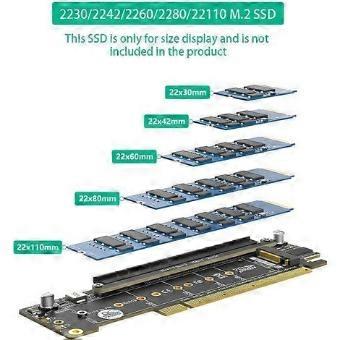

Description 1. The dual NVMe PCIe adapter allows you to add two M.2 NVMe SSD slots via PCIe 4.0 x16 and expand an additional PCIe x16 slot (x8 signal) that can be used to connect any other PCIe device. 2. Compatible with M.2 PCIe NVMe SSDs of all sizes: 110 x 22 mm, 80 x 22 mm, 60 x 22 mm, 42 x 22 mm, and 30 x 22 mm; not compatible with M.2 SSDs (SATA B+M connector). Motherboard compatibility: Most servers and X299 and X399 motherboards support PCIe x8x4x4 branching. 3. Note: 1. The 2-port PCIe NVMe adapter does not support hardware RAID. It only allows the creation of software RAID under Windows 10 or via third-party software. Both SSDs must be the same model. 4. The motherboard must support PCIe x8x4x4 bifurcation for all slots to operate at full speed. If the motherboard only supports x4x4x4x4, the extended PCIe x16 slot will only provide an x4 signal. If the motherboard does not support PCIe bifurcation, only the PCIe x16 slot will function, and no M.2 SSDs will be recognized. 5. Please refer to your motherboard's user manual on its official website if you are unsure of compatibility. Improved Design: 1. The two NVMe SSD slots are located on opposite sides of the polarity. This results in a smaller card size, and individual LED indicators display the operating status of each SSD. 2. Adding PCIe x16 slots is very useful when no other PCIe slots are available on the motherboard. Hardware Requirements: 1. The motherboard has an available PCIe 4.0 or 3.0 x16 slot. 2. The motherboard supports PCIe x16 bifurcation and can be configured as PCIe x8x4x4 in the BIOS. 3. All SSDs are in M.2 PCIe (M-key) NVMe format. 4. The processor has sufficient NVMe channels. Color: Black Material: ABS Package Contents: 1 x NVMe SSD Adapter Only the above-mentioned contents are included. Note: The color of the item in the photo may slightly differ from the real thing due to reflections and your monitor settings. The measurement allowed error margin is +/- 1 to 3 cm.
