Mini Load Cell Sensor 10kg 20kg HX711 Compatible Precision Bellows Type Dual Tension Compression

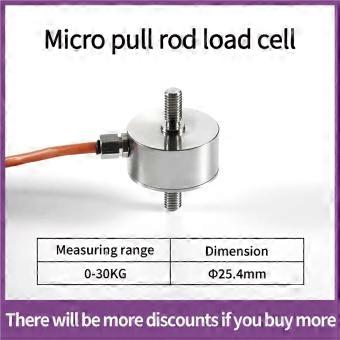

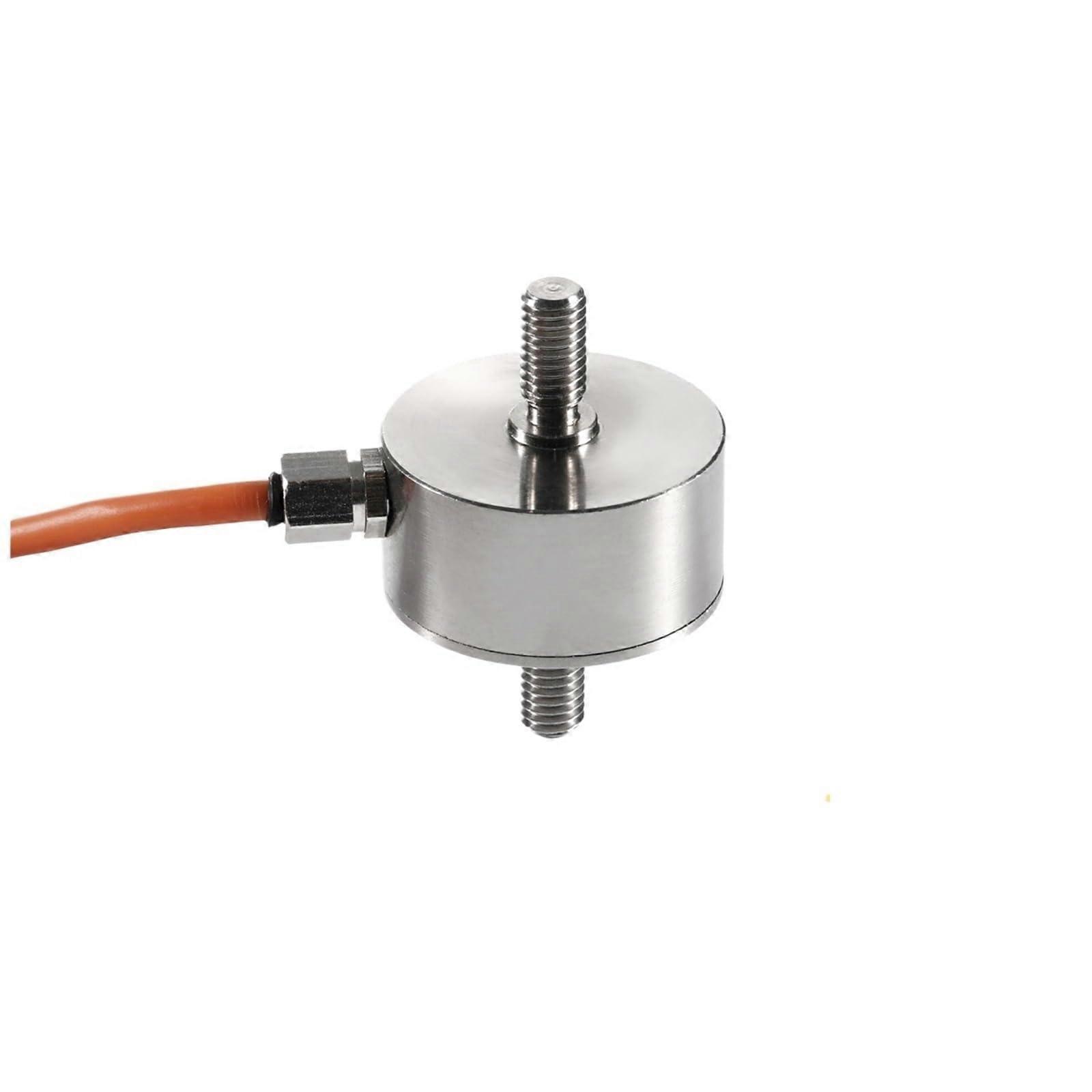

Mini Load Cell Sensor A4M7 Precision Bellows Type Key features Model: A4M7. Single piece load cell sensor designed for precise measurement of tension, compression, force, and weight. Sensor type: Bellows style mini load cell for compact installations where stable, repeatable readings are required. Capacity options: Available in capacity ranges covering 10KG and 20KG variants, with overall capacity specification listed as 10100KG. Measurement range label: Range 030kg. Compatibility: Designed to interface with HX711 ADC modules for easy connection to common microcontrollers and data acquisition systems. Chemical safety: Contains no concern chemicals. Why this sensor is useful Accurate force and weight measurement: precision bellows design produces consistent output suitable for laboratory testing, prototyping, and production fixtures. Dualmode operation: Measures both tension and compression without the need for separate sensors, reducing component count and simplifying installation. Compact form factor: Small size makes it easy to integrate into constrained spaces and portable devices. Easy electronics integration: Direct compatibility with HX711 simplifies signal conditioning and ADC conversion when used with microcontrollers. Performance and compatibility details Output: Suitable for use with HX711 amplifier boards to convert the sensor signal into a digital reading for microcontroller processing. Capacity flexibility: Select the capacity that matches your application from the available 10KG and 20KG options, or use within the broader 10100KG capacity range depending on system configuration. Safety and materials: No concern chemicals are present in the sensor. Typical applications Small electronic scales and weighing platforms where a compact, accurate load cell is required. Material testing and force measurement rigs for prototype validation and component testing. Robotics and automation for gripper force feedback, load monitoring, and control systems. Installation and usage tips Mount the sensor so that applied loads align with the axis of the bellows for accurate tension and compression readings. Use an HX711 or equivalent amplifier board for stable ADC conversion. Calibrate the sensor with known weights or forces after wiring to the amplifier and controller. Avoid exceeding the rated capacity for the selected sensor variant to maintain accuracy and prevent damage. Contents 1pc Mini Load Cell Sensor A4M7, bellows type, compatible with HX711. This description provides the core specifications, supported functions, and practical use guidance for the A4M7 mini load cell sensor to help select and integrate it into measurement and control projects.
