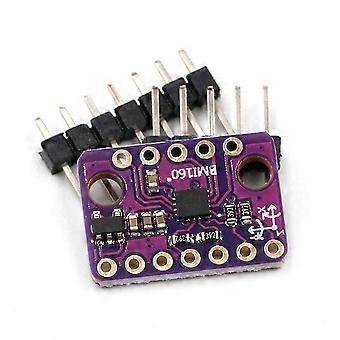

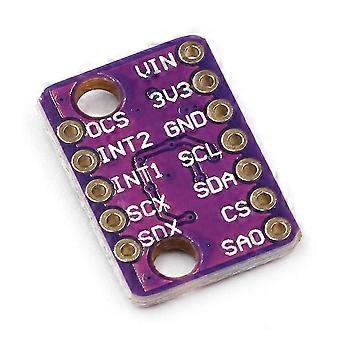

<p>Product introduction: The module uses for 's new BMI160 6-axis inertial motion sensor in a MEMS sensor package that integrates the top 16-bit 3-axis accelerometer with an ultra-low-power 3-axis gyroscope.</p> <p>The module can output acceleration data (acceleration values detected by the device in the X, Y, and Z directions) and gyroscope data (the speed at which the device rotates around the X, Y, and Z axes). When accelerometers and gyroscopes operate in full-speed mode, typical power consumption is as low as 950A, which is only 50% or less of the power consumption of similar products on the market.</p> <p>Designed for smartphones, tablets, and wearable devices, for the BMI160 includes a built-in smart step counter algorithm that reads the number of steps directly through the registers.</p> <p>The built-in 3-axis acceleration and 3-axis gyroscope enable motion detection such as running and fitness. Module built-in LDO power management chip, VIN supports 3.2~6V wide voltage supply, also has a separate 3.3V interface, compatible with for 3.3V and 5V controller direct drive.</p> <p>Application scenario: </p> <p>1. Walking step</p> <p>2. Acceleration detection</p> <p>3. Dip measurement</p> <p>4. Display switch horizontal \/ vertical mode</p> <p>Technical specifications: </p> <p>Working voltage: 3.2V~6V</p> <p>Current consumption: Less than1mA</p> <p>Interface mode: 2.54 pitch pin header</p> <p>Acceleration optional scale: 2g\/4g\/8g\/16g</p> <p>Gyro optional scale: 125\/s, 250\/s, 500\/s, 1000\/s, 2000\/s</p> <p>Accelerometer zero drift: 40mg</p> <p>Gyro zero drift: 10\/s</p> <p>Programmable frequency: 25\/32Hz~1600Hz</p> <p>6D detection and positioning</p> <p>16-bit data output</p> <p>Impact resistance: 10, 000 gx 200s</p> <p>2 programmable interrupt generators</p> <p>Built-in 1024 </p> <p>Working temperature: -40C ~ +85C</p> <p>Material: PCB</p> <p>colour: As Shown</p> <p>Package Contents: </p> <p>10 set Accelerometer Sensor Module</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
