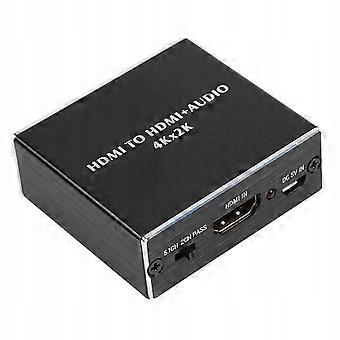

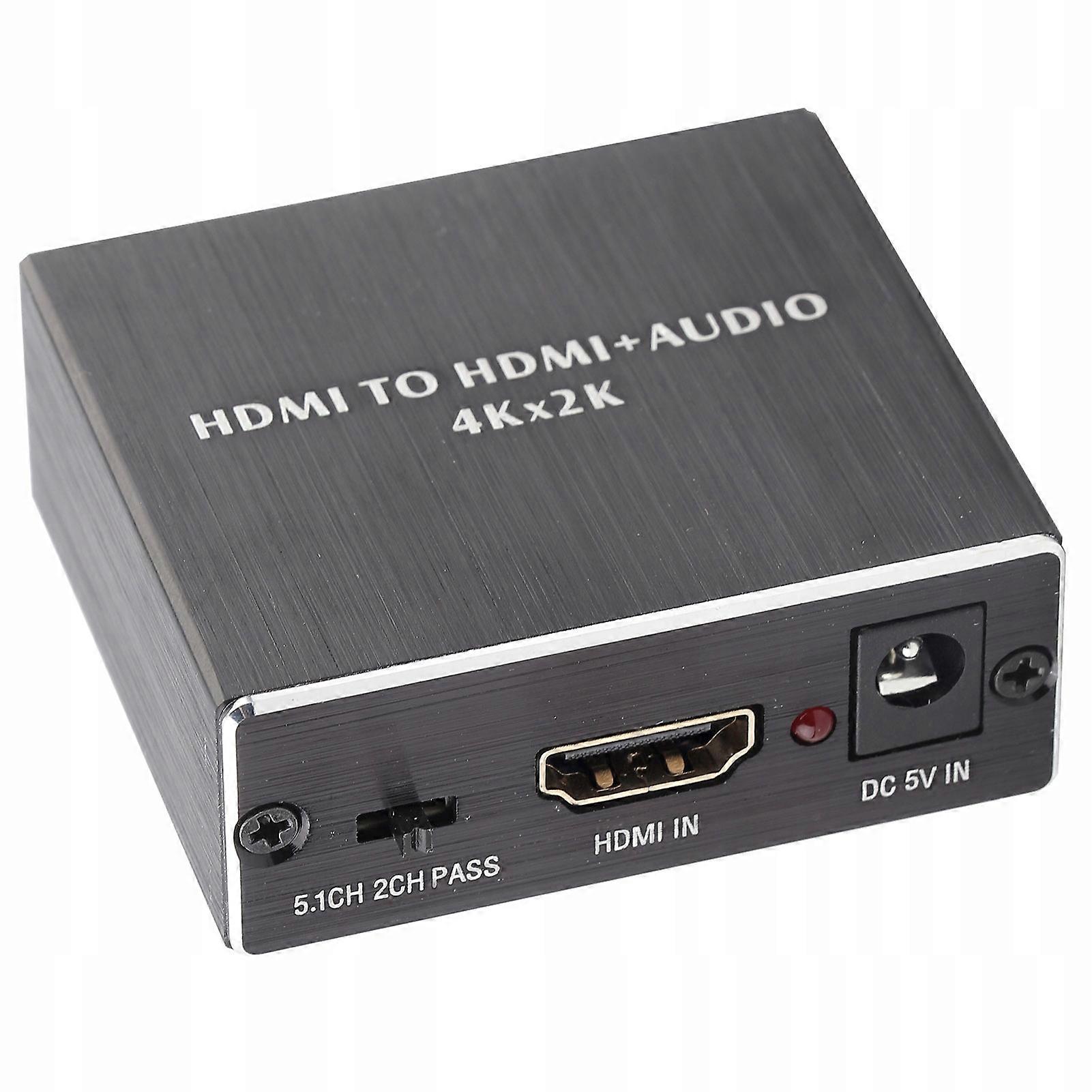

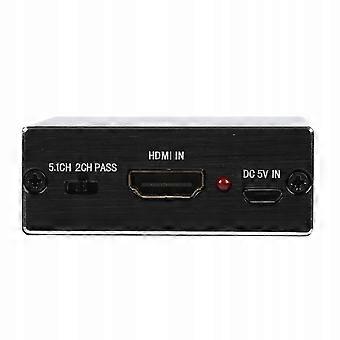

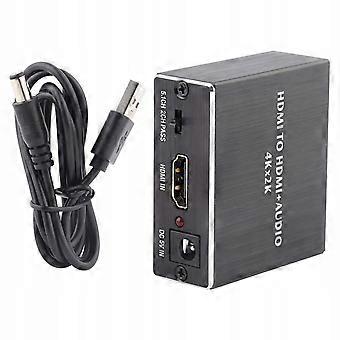

Characteristics: HDMI Sound Extractor — Extract audio signal from HDMI signal to power amplifier system for high-quality sound effects that are difficult to achieve with TV speakers HDMI Audio Converter - Convert 1 HDMI input to 1 HDMI 1 audio output (SPDIF) analog audio output 3,5 mm 4K*2K — input resolution up to 3840 x 2160 at 30 Hz; 4096 x 2160 at 30 Hz. 3 audio modes (PASS / 2.0CH / 5.1CH) to choose from - HDMI allows you to synchronize audio signal separation. LED indicator - The LED clearly indicates the operating status. . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K Specification: Type: HDMI Audio Splitter HDCP version: HDCP1.4 HDMI Version: HDMI1.4b HDMI Resolution: 2160p @ 30Hz /1080 @ 50 / 60HZ / 1080i/ 720P / 1576i / 480P / 480i Support video color format: 24 bits/dark kolor 30 bits, 36 bits Audio output: SPDIF sound 3,5 mm Maximum bandwidth: 340 MHz Maximum bit rate: 10,2 Gb/s TMDS Input/Output Signal: 0,5-1,5 V p-p (TTL) DDC Input/Output Signal: 5 Volts p-p (TTL) Input cable distance: ≤ 7 m (AWG26 HDMI standard cable) Output cable distance: ≤8 m (AWG26 HDMI standard cable) Operating voltage: DC 5 V Operating temperature range: -15 - 55℃ Operating humidity range: 5-90% RH (non-condensing) Weight: approx. 100 grams Size: approx. 58 x 53 x 21,9 mm / 2,3 * 2,1 * 0,9 inch . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K List of packages: 1 * HDMI Sound Splitter 1 * power cable 1 * User Manual Note: 1. 2. . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K . HDMI EXTRACTOR FOR HDMI SPDIF AUDIO 4K 2K
